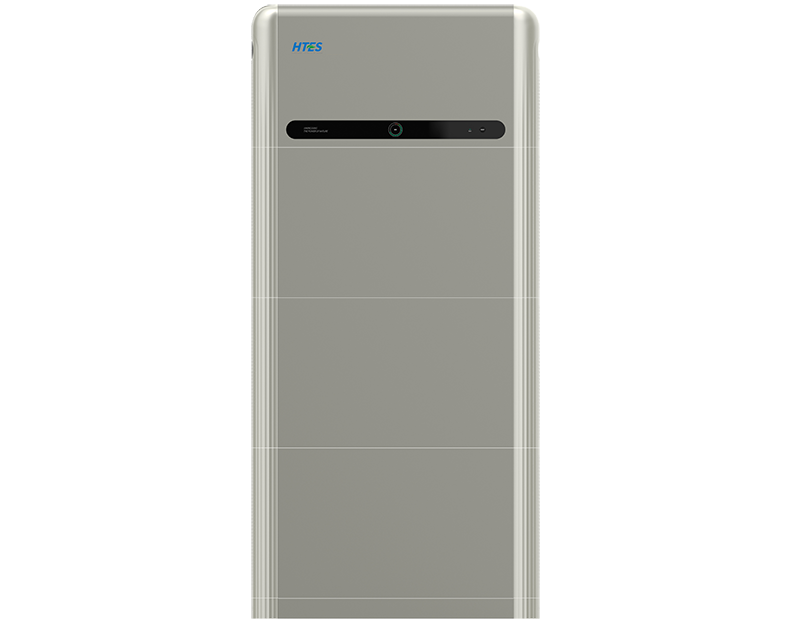

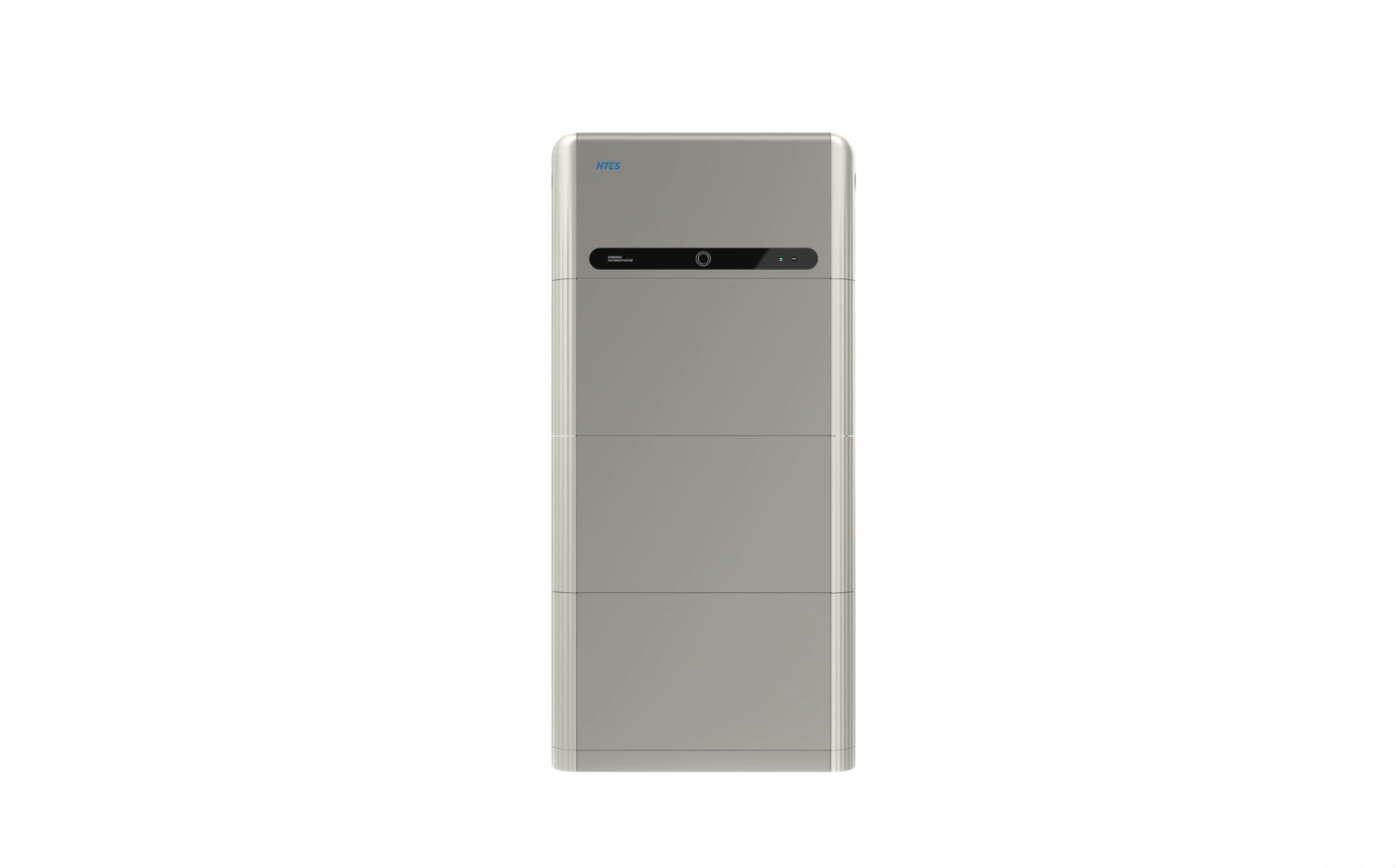

HELIOS H7000

The HELIOS H7000 residential energy storage system is a modular design that allows for flexible expansion and easy transportation. It has a built-in system protection for high safety levels. It uses quick-connect terminals for flexible installation, and a visual SOC display for simple maintenance. The innovative appearance design is fashionable and elegant, perfectly integrating into the home environment.

Quick-connect connector

Withstands 1000V DC voltage, IP67 high protection, double anti-misinsertion

High-performance lithium iron phosphate battery

High safety, long cycle life, high energy density, good high temperature performance, green and environmental protection

Fixed bracket

Adjustable wall-mounted bracket, effectively reduces the tilt angle, further improving the safety factor

Safe base

The base is fixed to the ground, with high safety, corrosion resistance, high salt fog resistance, and effectively improves the service life.

High protection grade communication harness

IP67 level, quick-connect terminal, one-piece injection molding, strong anti-interference ability

Mature and reliable BMS management system

High reliability, high safety, high adaptability, low maintenance cost, advanced algorithm

Exquisite shell

Slim profile, small footprint, home appliance appearance, warm color matching, better integration into the home

Visualization display

Accurate power calculation, with SOC automatic calibration function, high brightness and long life LED lamp beads

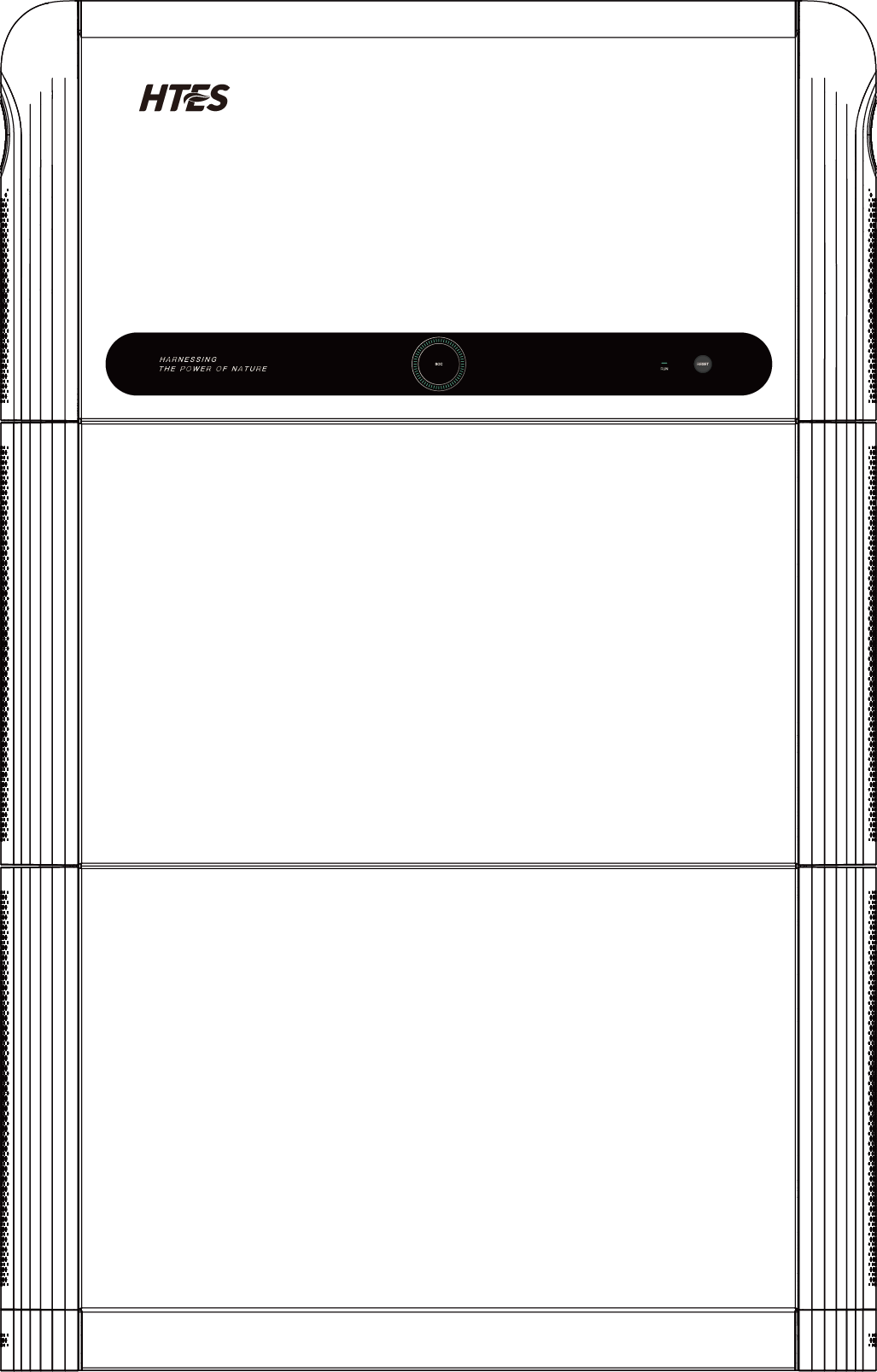

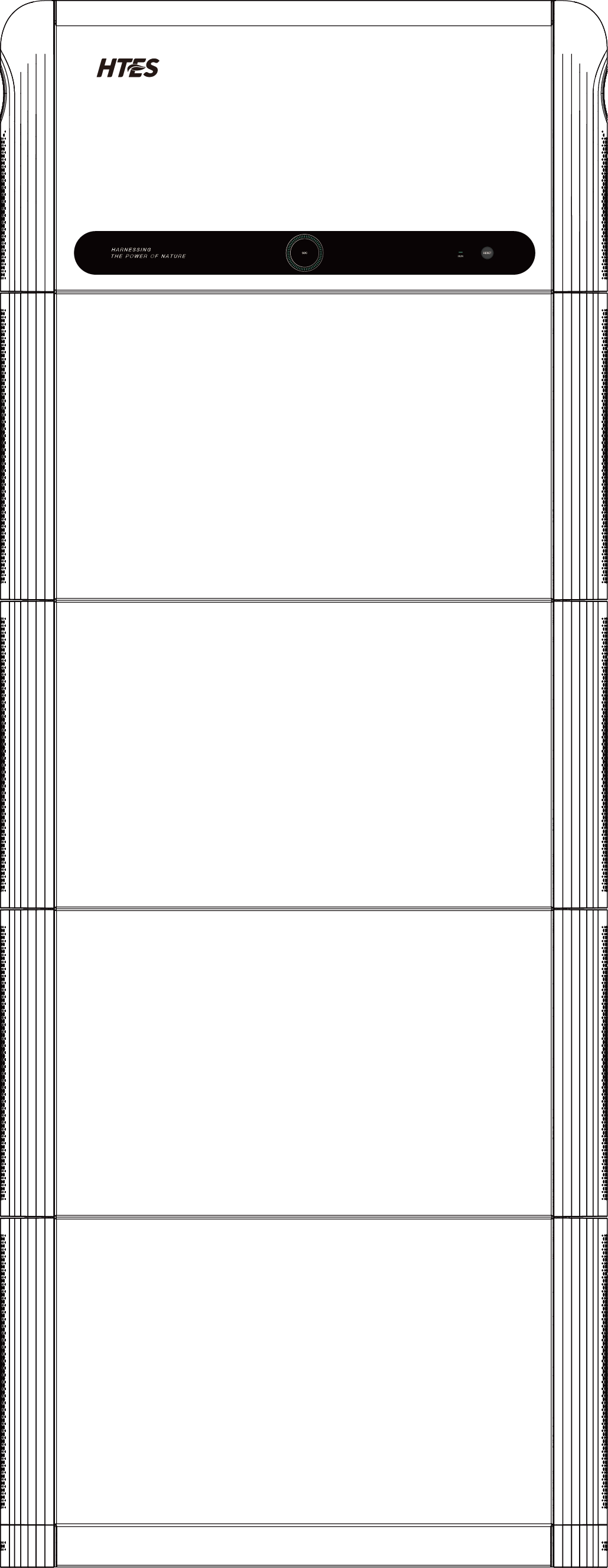

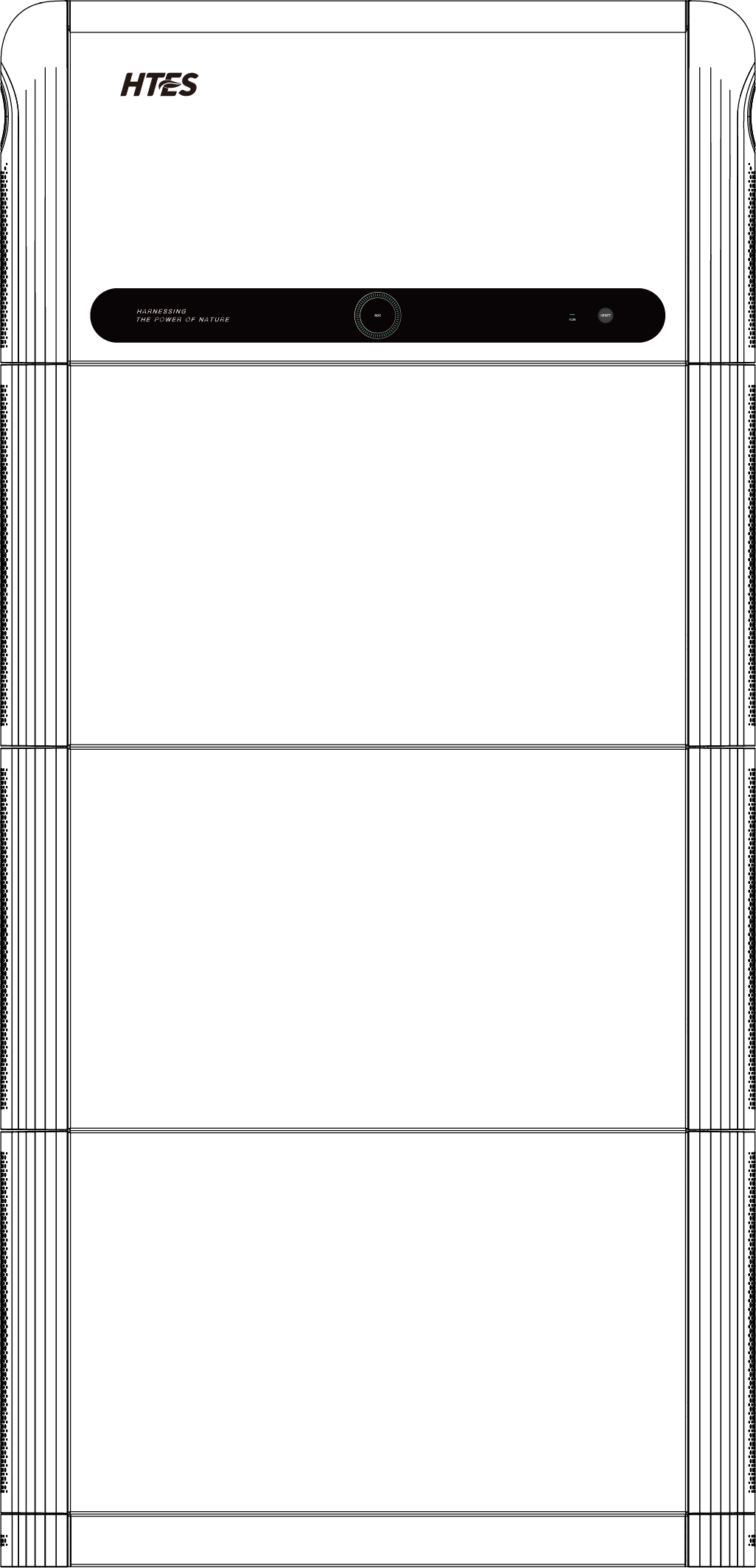

STACKED CONFIGURATION

Modular design, Expandable at will with a stacked configuration.

7.68 kWh

11.52 kWh

15.36 kWh

HELIOS H7000 DATA SHEET

Advanced cell manufacturing process，Wide temperature range, low loss, high efficiency，Cluster temperature control system; convenient replacement, plug and play, ultra-fast maintenance，Safe and reliable, with high energy density and long life。

Cell Type

LFP

Standard Pack - String Union Number

24S1P

Standard pack - Rated Voltage (V)

76.8

Standard Pack - Nominal Capacity (Ah)

Standard Pack - Nominal Energy (kWh)

3.84

Standard Pack - Weight (kg)

≤40

Standard bag - Size (mm)

718*365*152

Standard Pack - Level Of Protection

IP54

Number Of Standard Packs (set)

2/3/4

System Rated Voltage (V)

153.6/230.4/307.2

System Operating Voltage Range (V)

134.4~172.8/201.6~259.2/268.8~345.6

System Nominal Energy (kWh)

7.68/11.52/15.36

Rated Charge And Discharge Current (A)

Max. Charge And Discharge Current (A)

Communication Method

CAN/RS485

System Dimensions (L * H * D) (mm

718*(1125/1490/1855)*152

System Weight (kg)

≤100/≤140/≤180

System Protection Level

IP54

Cooling Method

Natural Cooling

Operating Temperature (℃)

Charging: 3℃~55℃ / Discharging: -20℃~55℃

Relative Humidity Range (%)

5~95%

Installation Method

Landing

Maximum Working Altitude (m)

2000

Category

HTESS-7.6K153C/11.5K230C/15.3K307C

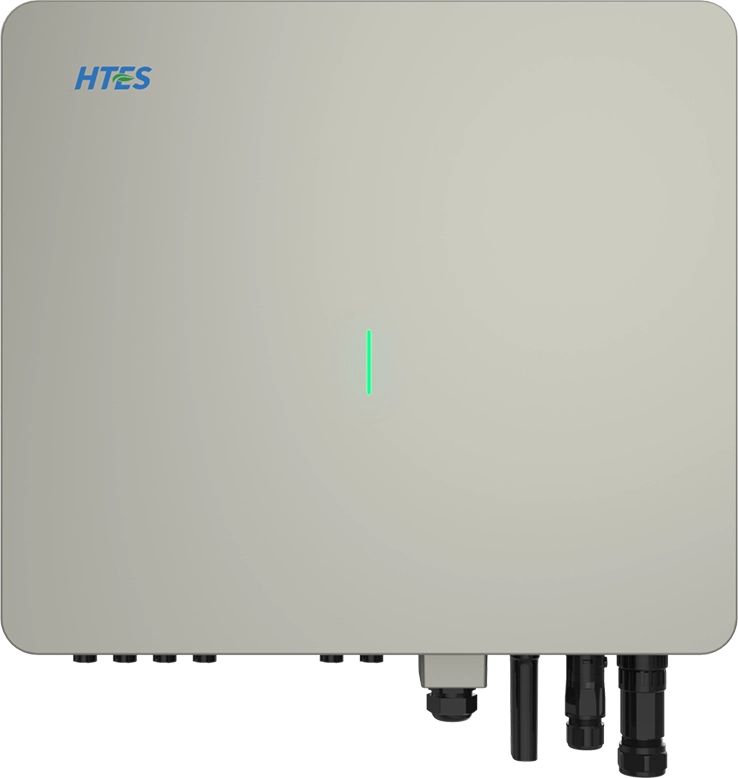

THREE PHASE ESS HYBRID INVERTER

Residential Smart Energy Management Terminal，Supports full-power discharge, with automatic management of battery charging and discharging，Compatible with both single-phase and three-phase loads, supports 100% unbalanced loads，Support automatic matching of mainstream batteries。

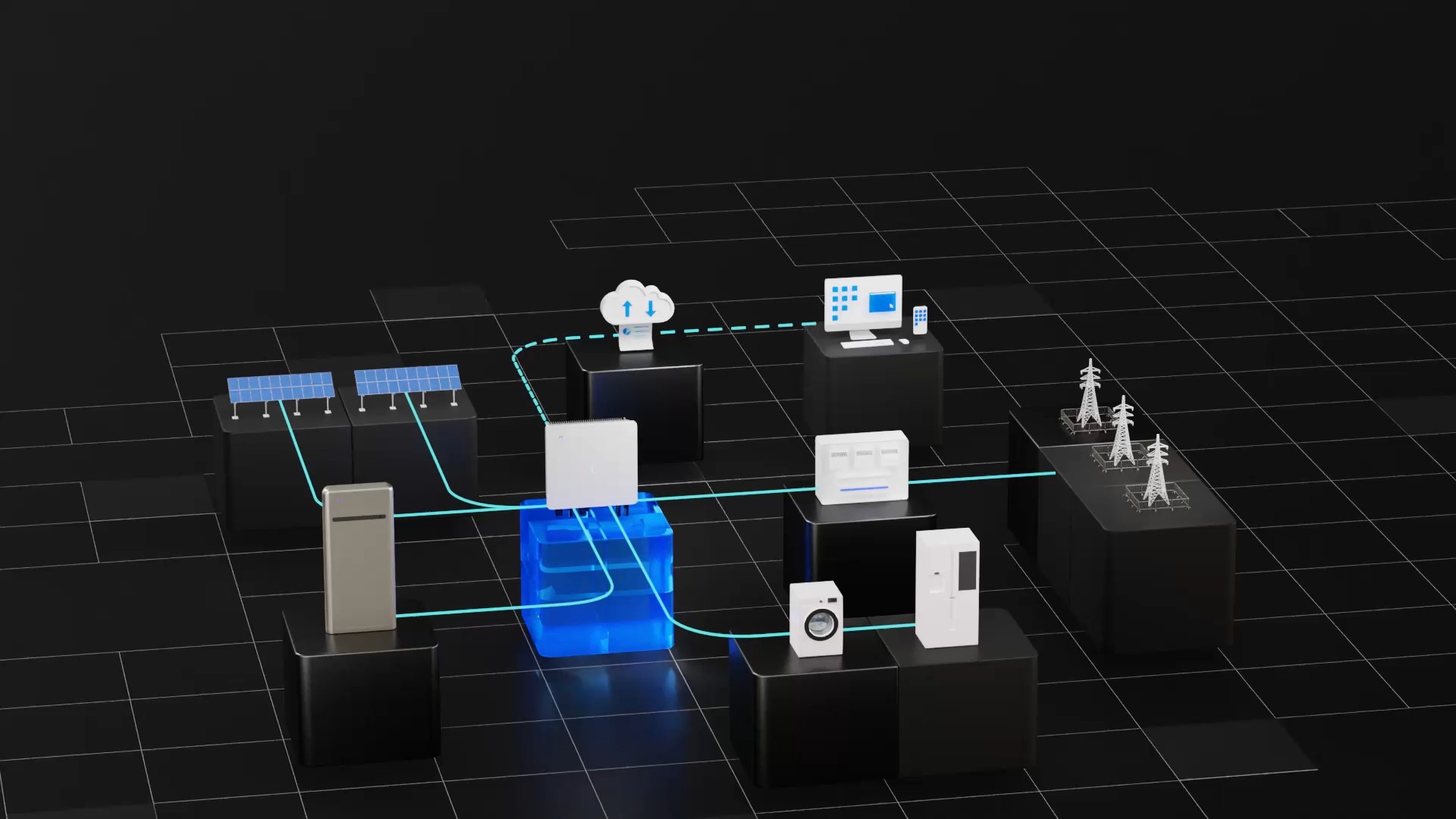

TYPICAL APPLICATION SCENARIOS

THREE-PHASE HYBRID INVERTER PARAMETERS TABLE

CERTIFICATION

GENERAL DATA

EFFICIENCY

BATTERY PARAMETER

PV INPUT

ON-GRID PARAMETER

OFF-GRID OUTPUT

HT-HBI-T10SH V1

CE_LVD

IEC 62109-1.IEC 62109-2,EN 62109-1,EN 62109-2

CE EMC

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4

Grid

VDE-AR-N 4105,G98,G99,CEI 0-21,EN50549, NRS 097-2-1.AS 4777.2.R25

HT-HBI-T12SH V1

CE_LVD

IEC 62109-1.IEC 62109-2,EN 62109-1,EN 62109-2

CE EMC

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4

Grid

VDE-AR-N 4105,G98,G99,CEI 0-21,EN50549, NRS 097-2-1.AS 4777.2.R25

HT-HBI-T15SH V1

CE_LVD

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

CE EMC

EN61000-6-1,EN61000-6-2.EN61000-6-3.EN61000-6-4

Grid

VDE-AR-N 4105.G98.G99.CEI 0-21.EN50549. NRS 097-2-1. AS 4777.2,R25

HT-HBI-T20SH V1

CE_LVD

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

CE EMC

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4

Grid

VDE-AR-N 4105,G98，G99，CEI O-21,EN50549 NRS 097-2-1，AS 4777.2,R25

HT-HBI-T10SH V1

Size(W*H*D )

573mm*509mm*219mm

Weight

35kg

Noise

<45dB(A)

Operating Temperature Range

-25°C~+60°C

Cooling Method

Air Cooling

Ingress Protection Grade

IP65

Communication Port

RS485/CAN/DRED/DO/Parallel Port

Monitoring

LED/APP/WIFI/4G/Bluetooth

Protection

DC Switch, AC Over voltage Protection, AC Over current Protection AC Short Circuit Protection,Anti-is landing Protection.Residual Current Monitoring, PV Insulation Resistance Detection,Surge Protection, PV Reverse Polarity Protection, Lightning Protection

HT-HBI-T12SH V1

Size(W*H*D )

573mm*509mm*219mm

Weight

35kg

Noise

<45dB(A)

Operating Temperature Range

-25°C~+60°C

Cooling Method

Air Cooling

Ingress Protection Grade

IP65

Communication Port

RS485/CAN/DRED/DO/Parallel Port

Monitoring

LED/APP/WIFI/4G/Bluetooth

Protection

HT-HBI-T15SH V1

Size(W*H*D )

573mm*509mm*219mm

Weight

35kg

Noise

<45dB(A)

Operating Temperature Range

-25°C~+60°C

Cooling Method

Air Cooling

Ingress Protection Grade

IP65

Communication Port

RS485/CAN/DRED/DO/Parallel Port

Monitoring

LED/APP/WIFl/4C/Bluetooth

Protection

HT-HBI-T20SH V1

Size(W*H*D )

573mm*509mm*219mm

Weight

35kg

Noise

<45dB(A)

Operating Temperature Range

-25°C~+60°C

Cooling Method

Air Cooling

Ingress Protection Grade

IP65

Communication Port

RS485/CAN/DRED/DO/Parallel Port

Monitoring

LED/APP/WIFl/4C/Bluetooth

Protection

HT-HBI-T10SH V1

Max. Efficiency

98.20%

European Efficiency

97.70%

Max.Battery Charging/Discharging Efficiency

97.80%

HT-HBI-T12SH V1

Max. Efficiency

98.20%

European Efficiency

97.70%

Max.Battery Charging/Discharging Efficiency

97.80%

HT-HBI-T15SH V1

Max. Efficiency

98.20%

European Efficiency

97.70%

Max.Battery Charging/Discharging Efficiency

97.80%

HT-HBI-T20SH V1

Max. Efficiency

98.20%

European Efficiency

97.70%

Max.Battery Charging/Discharging Efficiency

97.80%

HT-HBI-T10SH V1

Battery Type

Lithium-ion

Number of Battery Input

Full Load Battery Voltage Range

210-800V

Peak Charging/Discharging Current & Duration

35A/35A(60s)

Max.Charging/Discharging Current

25A/25A

Battery Voltage Range

160-800V

HT-HBI-T12SH V1

Battery Type

Lithium-ion

Number of Battery Input

Full Load Battery Voltage Range

250-800V

Peak Charging/Discharging Current & Duration

35A/35A(60s)

Max.Charging/Discharging Current

25A/25A

Battery Voltage Range

160-800V

HT-HBI-T15SH V1

Battery Type

Lithium-ion

Number of Battery Input

Full Load Battery Voltage Range

300-800V

Peak Charging/Discharging Current & Duration

35A/35A(60s)

Max.Charging/Discharging Current

25A/25A

Battery Voltage Range

160-800V

HT-HBI-T20SH V1

Battery Type

Lithium-ion

Number of Battery Input

Full Load Battery Voltage Range

400-800V

Peak Charging/Discharging Current & Duration

35A/35A(60s)

Max.Charging/Discharging Current

25A/25A

Battery Voltage Range

160-800V

HT-HBI-T10SH V1

Max.Input Power

15000Wp

Max. Input Voltage

1000V

Number of MPPT

Max. Input Strings Per MPPT

MPPT Voltage Range

180-960V

Full Load MPPT Voltage Range

250~850V

Nominal Input Voltage

600V

Starting Voltage

200V

Max.Input Current

25A/25A

Short-Circuit Current

30A/30A

HT-HBI-T12SH V1

Max.Input Power

18000Wp

Max. Input Voltage

1000V

Number of MPPT

Max. Input Strings Per MPPT

MPPT Voltage Range

180-960V

Full Load MPPT Voltage Range

290-850V

Nominal Input Voltage

600V

Starting Voltage

200V

Max.Input Current

25A/25A

Short-Circuit Current

30A/30A

HT-HBI-T15SH V1

Max.Input Power

22500Wp

Max. Input Voltage

1000V

Number of MPPT

Max. Input Strings Per MPPT

MPPT Voltage Range

180-960V

Full Load MPPT Voltage Range

350-850V

Nominal Input Voltage

600V

Starting Voltage

200V

Max.Input Current

25A/25A

Short-Circuit Current

30A/30A

HT-HBI-T20SH V1

Max.Input Power

30000Wp

Max. Input Voltage

1000V

Number of MPPT

Max. Input Strings Per MPPT

MPPT Voltage Range

180-960V

Full Load MPPT Voltage Range

450-850V

Nominal Input Voltage

600V

Starting Voltage

200V

Max.Input Current

25A/25A

Short-Circuit Current

30A/30A

HT-HBI-T10SH V1

Nominal Output Power

10kW

Max.Output Power

11kVA

Max. Input Power From Grid

20kVA

Max. Input Current from Grid

30A

Max. Output Current

16A

Nominal Grid Voltage

3/N/PE,220380V,230/400V,240/415V

Grid Voltage Range

184-276V

HT-HBI-T12SH V1

Nominal Output Power

12kW

Max.Output Power

13.2KVA

Max. Input Power From Grid

24KVA

Max. Input Current from Grid

35A

Max. Output Current

20A

Nominal Grid Voltage

3/N/PE,220380V,230/400V,240/415V

Grid Voltage Range

184-276V

HT-HBI-T15SH V1

Nominal Output Power

15kW

Max.Output Power

16.5KVA

Max. Input Power From Grid

30KVA

Max. Input Current from Grid

44A

Max. Output Current

24A

Nominal Grid Voltage

3/N/PE,220/80V,230/400V,240/415V

Grid Voltage Range

184-276V

HT-HBI-T20SH V1

Nominal Output Power

20kW

Max.Output Power

22kVA

Max. Input Power From Grid

40kVA

Max. Input Current from Grid

60A

Max. Output Current

32A

Nominal Grid Voltage

3/N/PE,220/80V,230/400V,240/415V

Grid Voltage Range

184-276V

HT-HBI-T10SH V1

Nominal Output Power

10kW

Nominal Voltage

3/N/PE,220/380Vac, 230/400Vac

Nominal Frequency

50/60Hz

Output THDu

<3%

Nominal Output Current

15A

HT-HBI-T12SH V1

Nominal Output Power

12kW

Nominal Voltage

3/N/PE,220/380Vac, 230/400Vac

Nominal Frequency

50/60Hz

Output THDu

<3%

Nominal Output Current

18A

HT-HBI-T15SH V1

Nominal Output Power

15kW

Nominal Voltage

3/N/PE,220/380Vac, 230/400Vac

Nominal Frequency

50/60Hz

Output THDu

<3%

Nominal Output Current

22.5A

HT-HBI-T20SH V1

Nominal Output Power

20kW

Nominal Voltage

3/N/PE,220/380Vac, 230/400Vac

Nominal Frequency

50/60Hz

Output THDu

<3%

Nominal Output Current

30A
