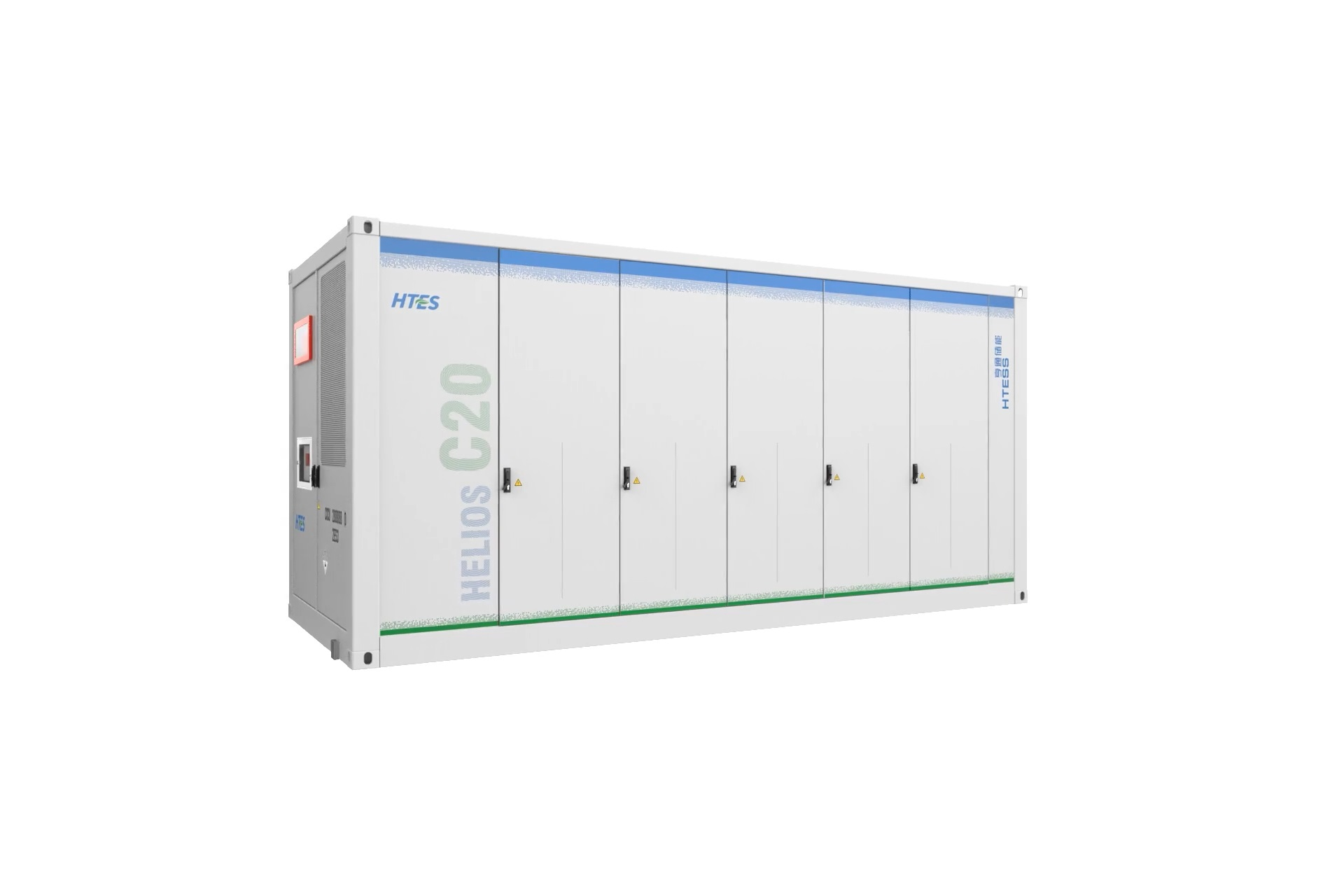

HELIOS C20

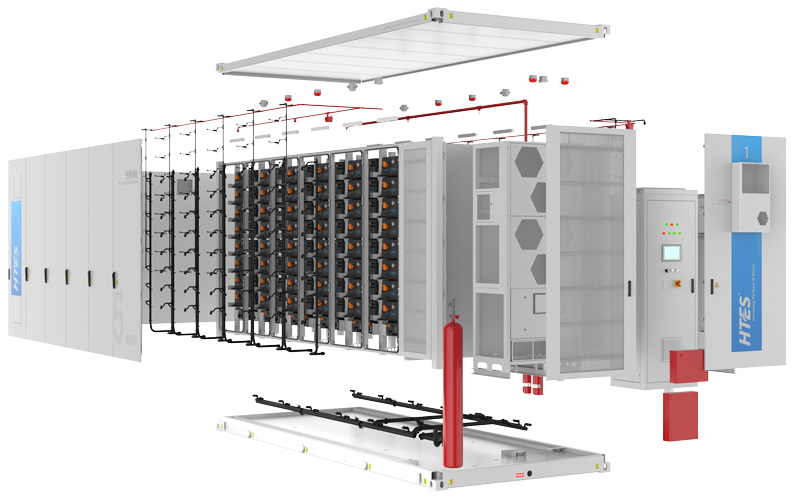

HELIOS C20 liquid-cooled containerized energy storage is an integrated high-energy density system consisting of battery modules, battery management system (BMS), fire protection system (FSS), thermal management system (TMS), and auxiliary distribution system. It has the advantages of cloud monitoring, remote upgrade and operation and maintenance, high integration, small footprint, and overall transport. The battery cell temperature is stable, with small temperature difference, and long service life.

Excellent Cell Performance

· High cycle counts
· Long service life

Efficient and Convenient Maintenance

· External maintenance design

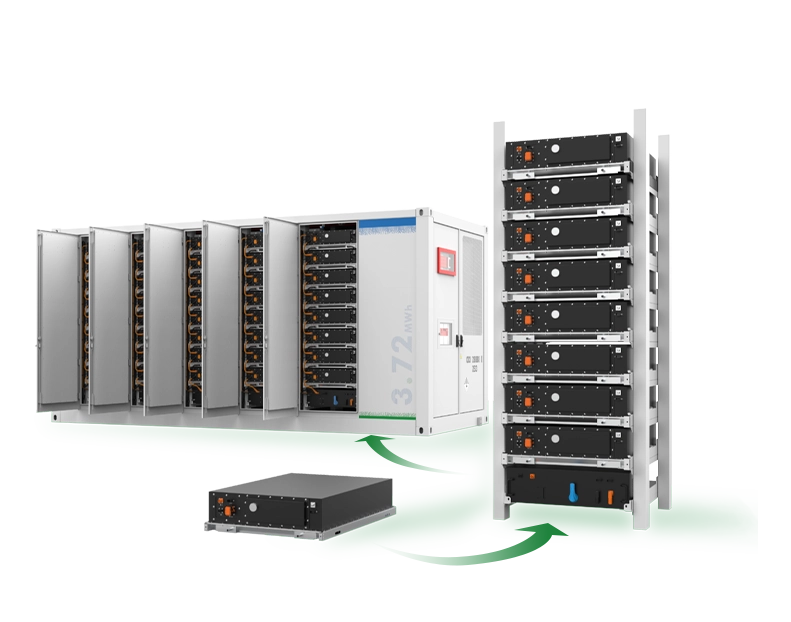

Flexible Layout

· Modular design

Precise Temperature Control

· Liquid cooling design ensures good cell temperature consistency
· Effectively controls temperature differences within 3°C
· Intelligent liquid cooling temperature control reduces system auxiliary power consumption

High Safety

· Multiple intelligent fire protection system design

Maximum 0.5P Operation

Reduced On-site Installation

· Pre-installed design for integrated transportation

Efficient Online Operation and Maintenance

· Unique cloud platform reduces the number of worker inspections

HELIOS C20 DATA SHEET

It has the advantages of cloud monitoring, remote upgrade and operation and maintenance, high integration, small footprint, and overall transport. The battery cell temperature is stable, with small temperature difference, and long service life.

Model

HT-CTNESS-L5000H V1

Battery Type

LFP

System Configuration

12*1P416S

Cell Specifications

3.2V/314Ah

Energy Rating

5.016MWh

Rated Voltage

1331.2V

Voltage Range

1164.8~1497.6V

Rated Charging/Discharging Power

0.5P/0.5P

Temperature Difference Of The Core Within The Cluster

≤3℃

Operating Temperature

Charging:0℃~55℃/Discharge:-30℃~55°

Storage Temperature

0~35°℃(6 months) Less than 0°c or > 35°C (one month)

Relative Humidity

0~95%，no condensation

Altitude

4000m (more than 2000m needs to be derated)

Container Size

20-foot container

Container Weight

≈43t

Container Protection Class

IP54

Fire Protection System

Temperature sensing, smoke sensing, combustible gas detection, fire ventilation,fire extinguishing chemicals, water sprinkler reserve, PACK level fire protection

Auxiliary Power

AC400V，50/60Hz

Thermal ManagementMethods

liquid cooling

Anti-Corrosion Grade

C3 (optional C4/C5)

Communication Interface

Ethernet, RS485, CAN, etc.

Design Life

20 years

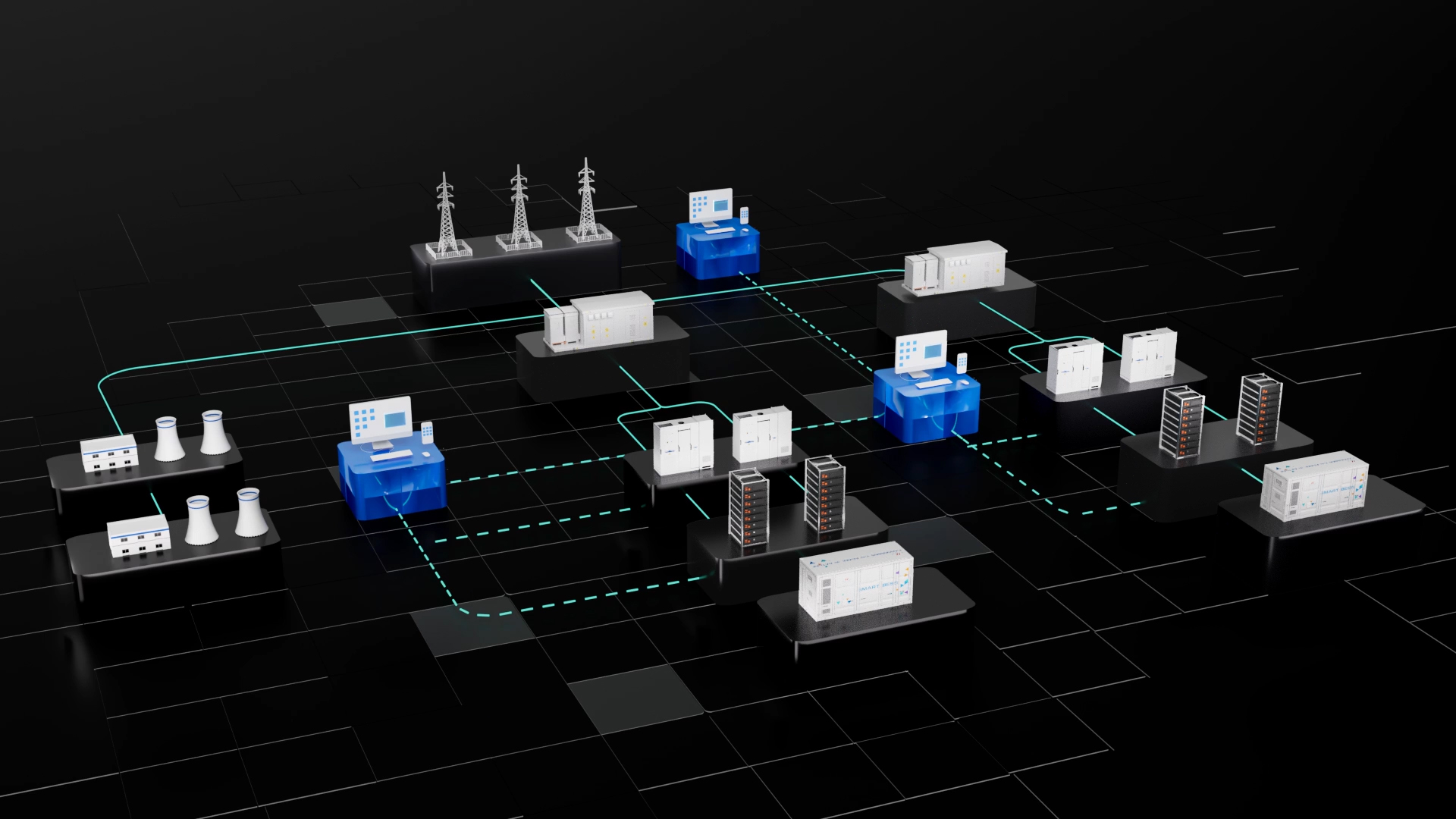

TYPICAL APPLICATION SCENARIOS
