Models

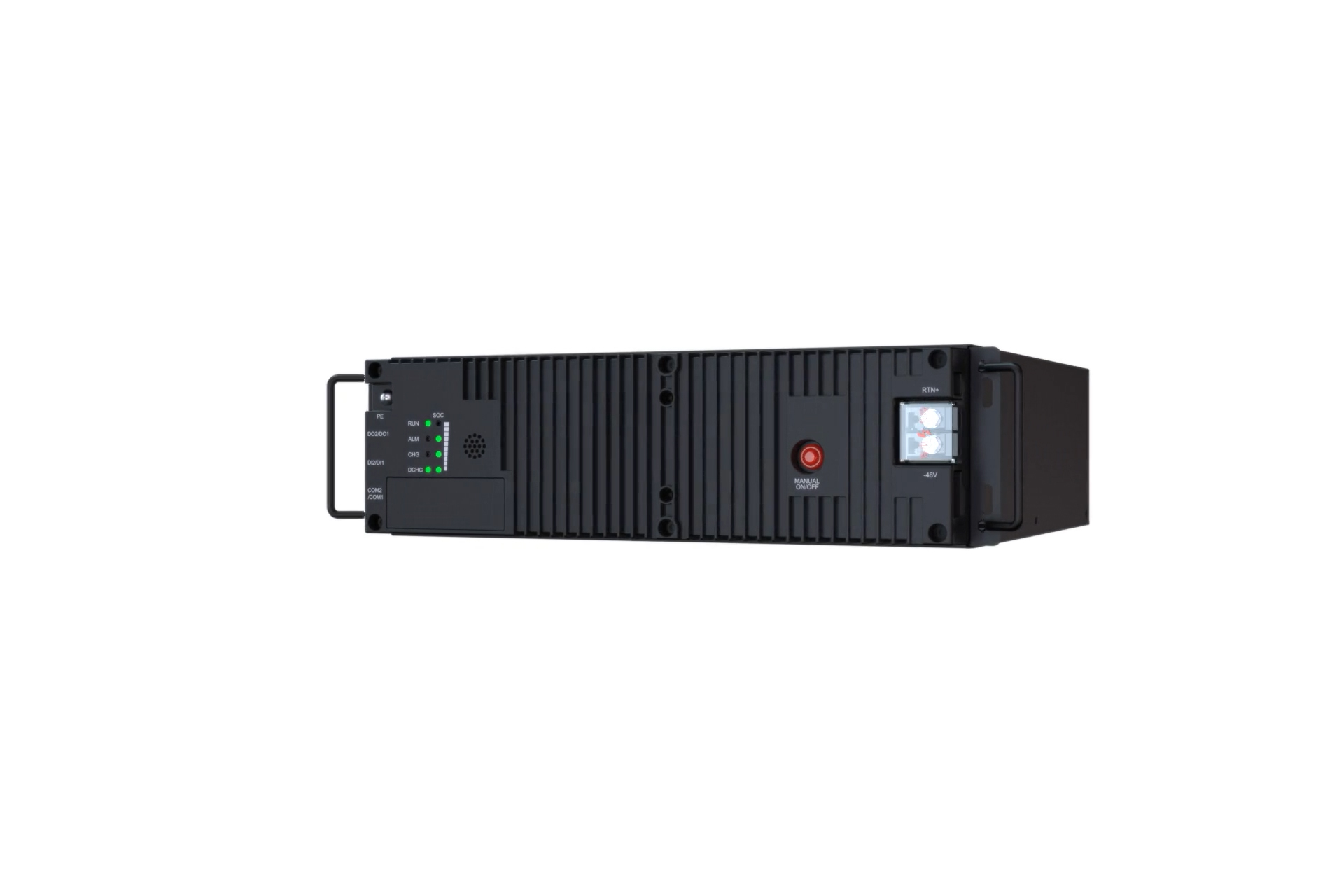

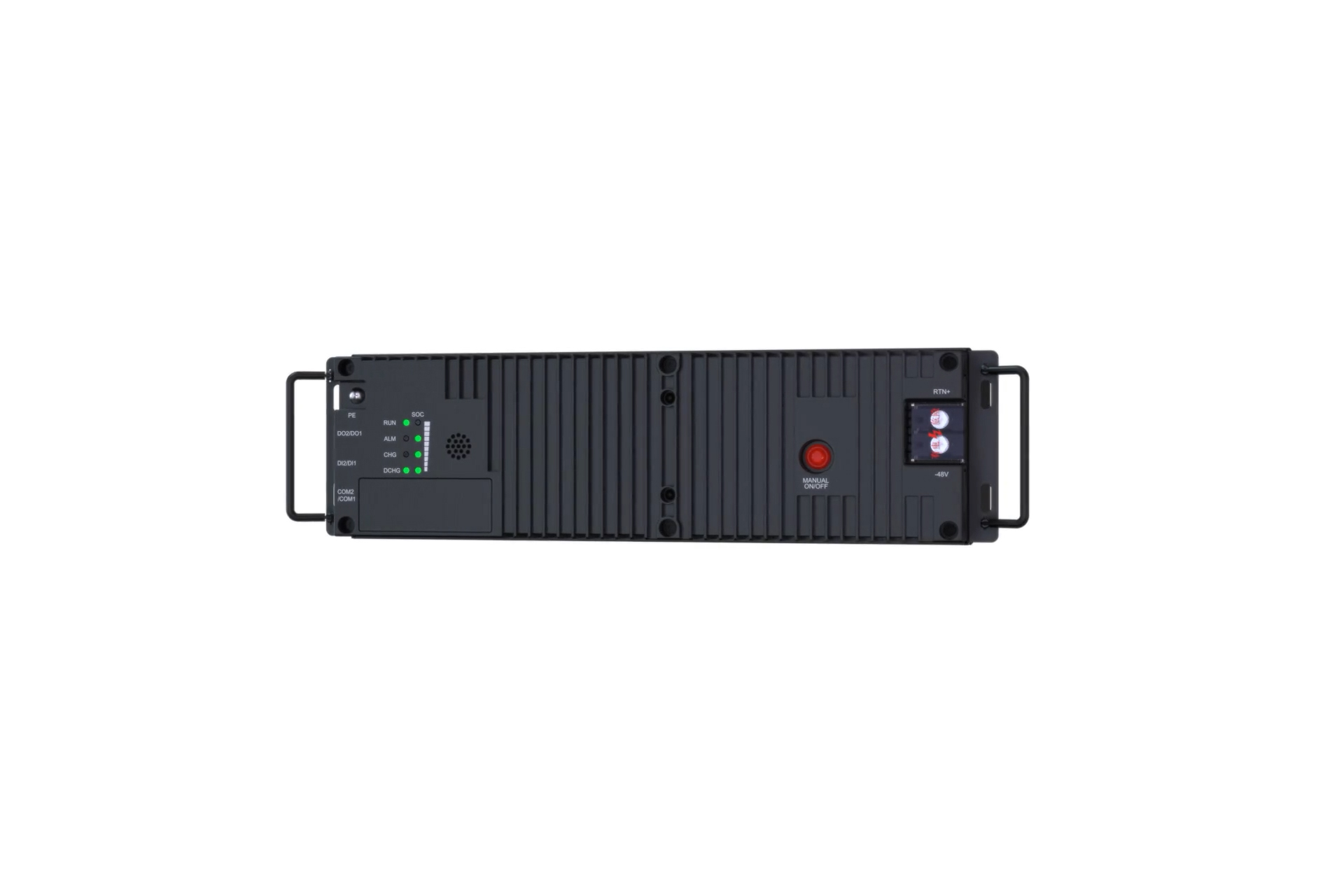

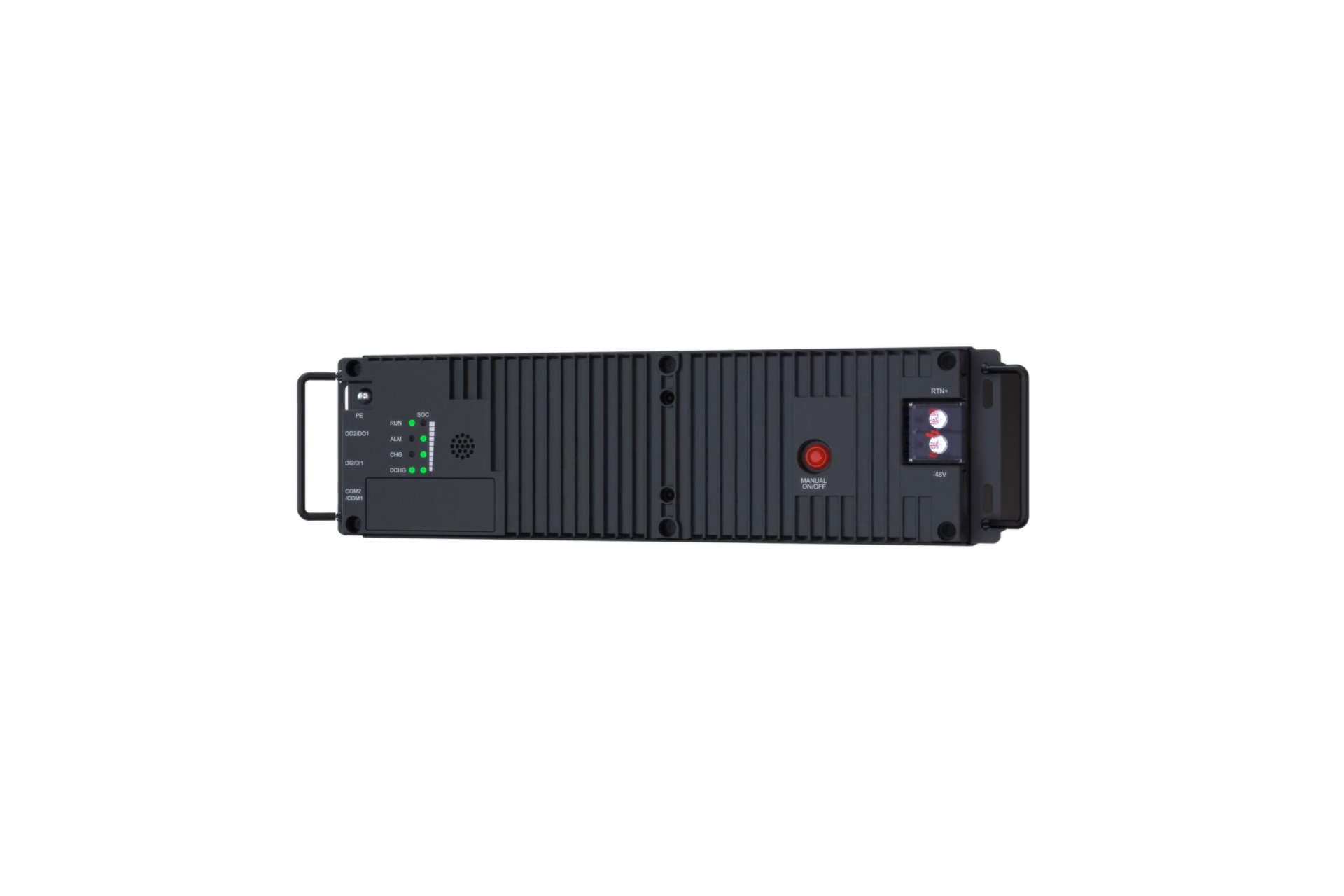

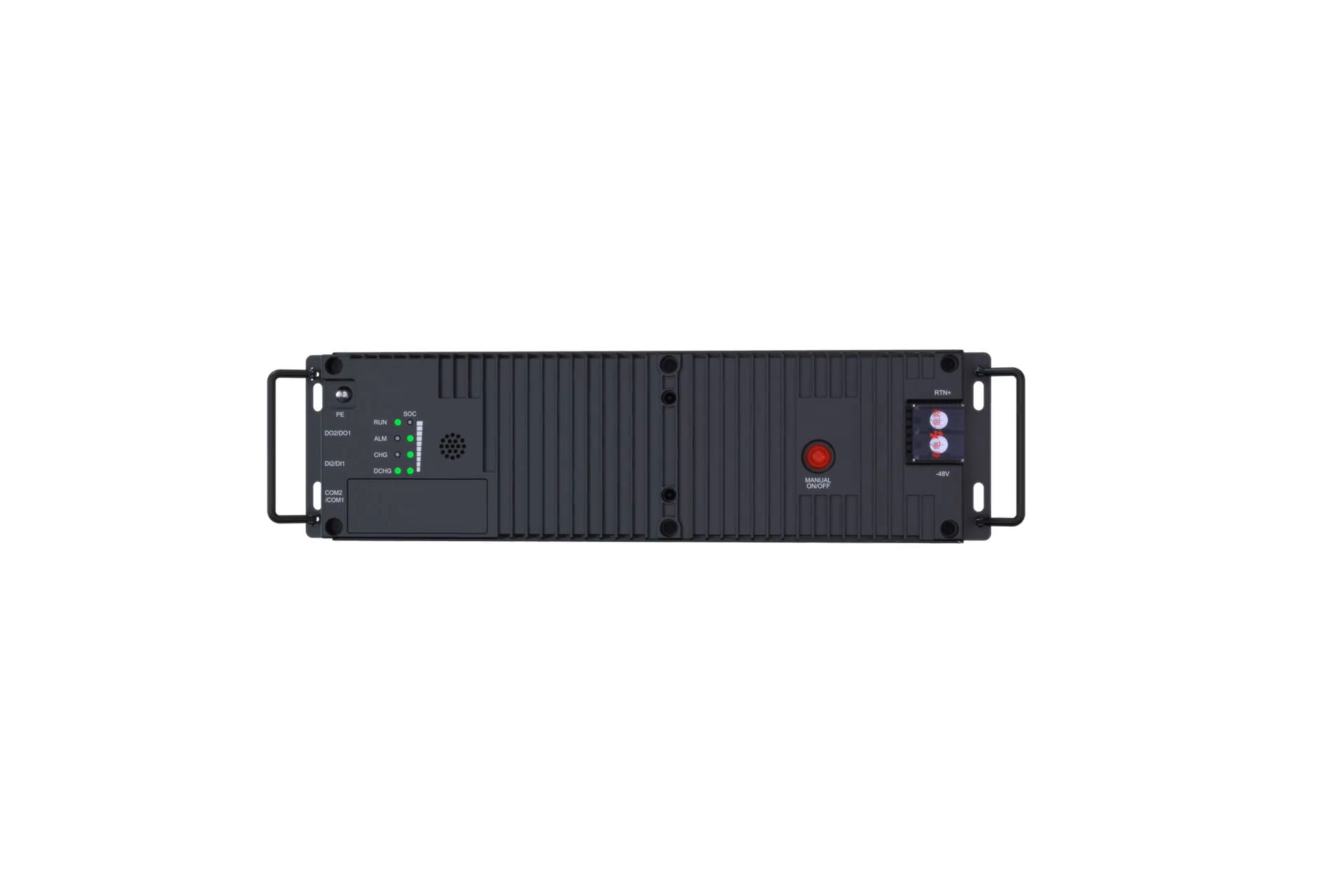

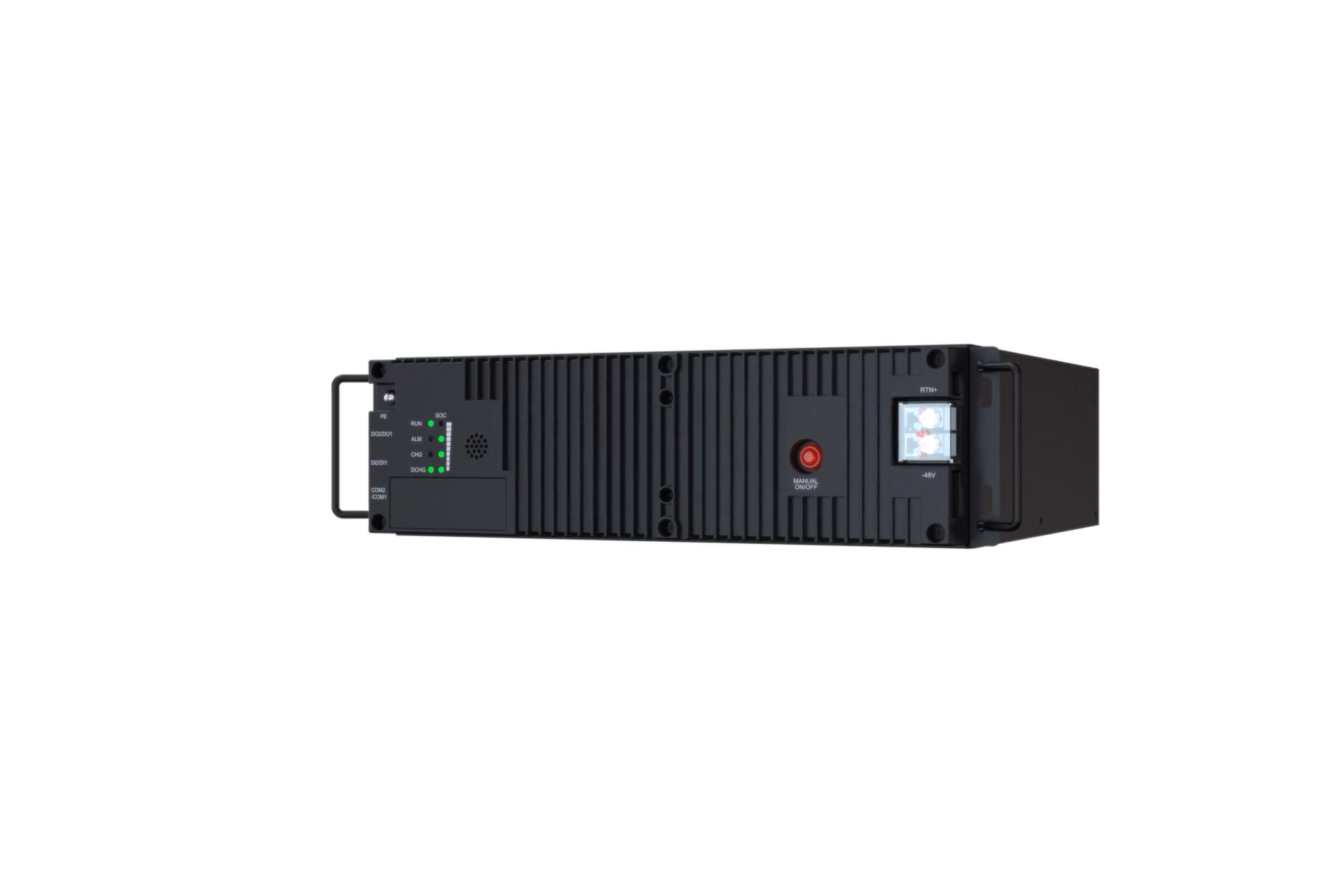

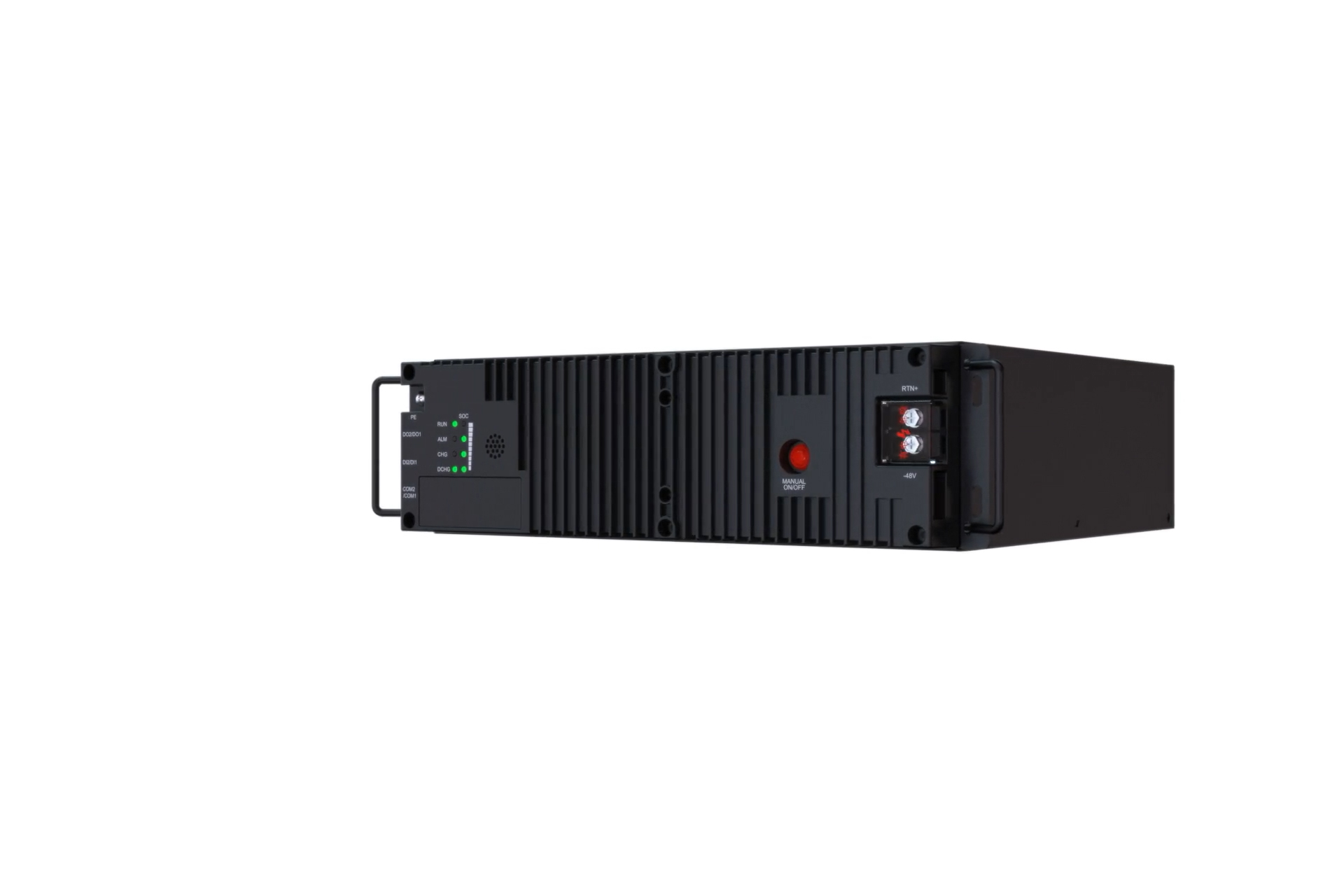

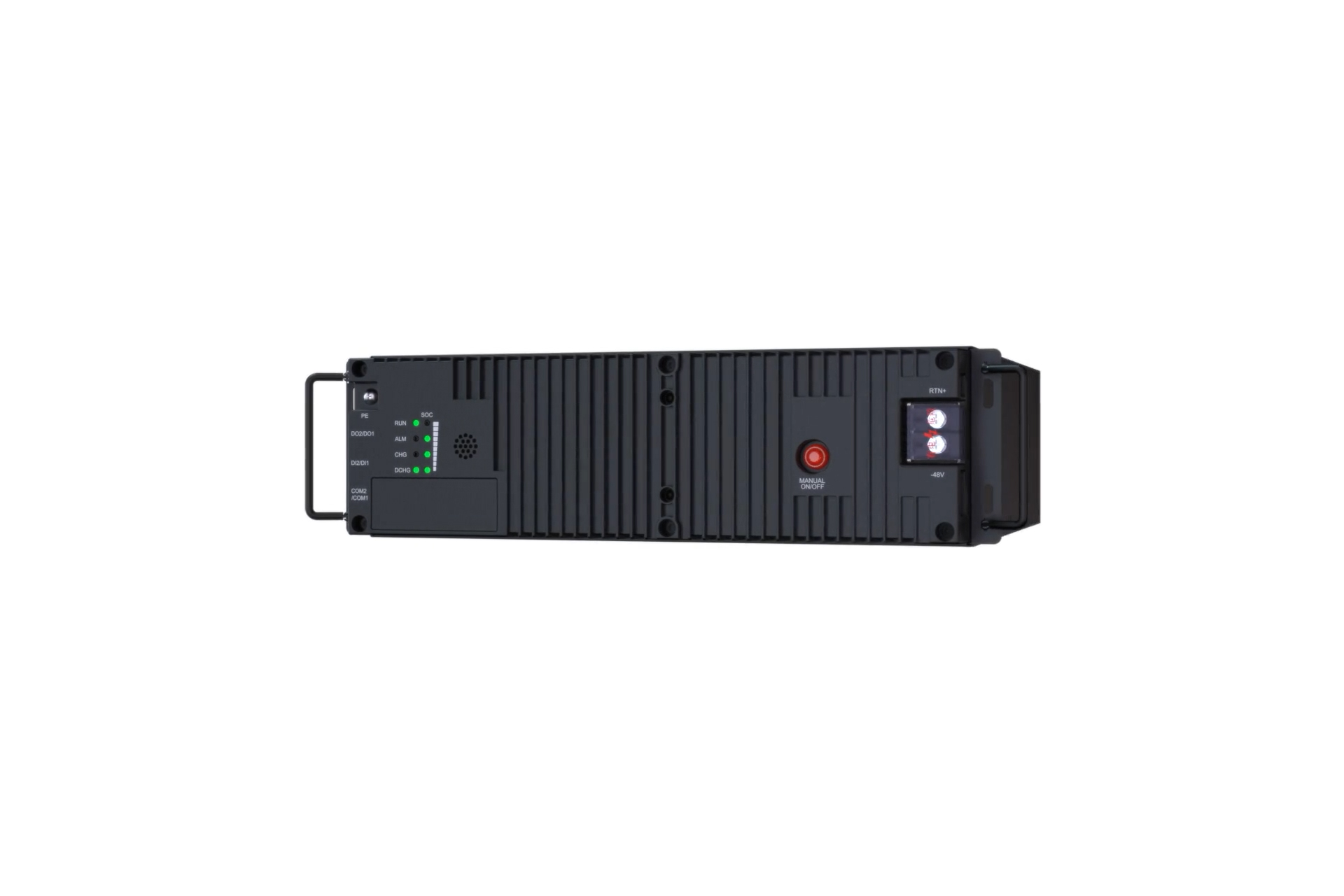

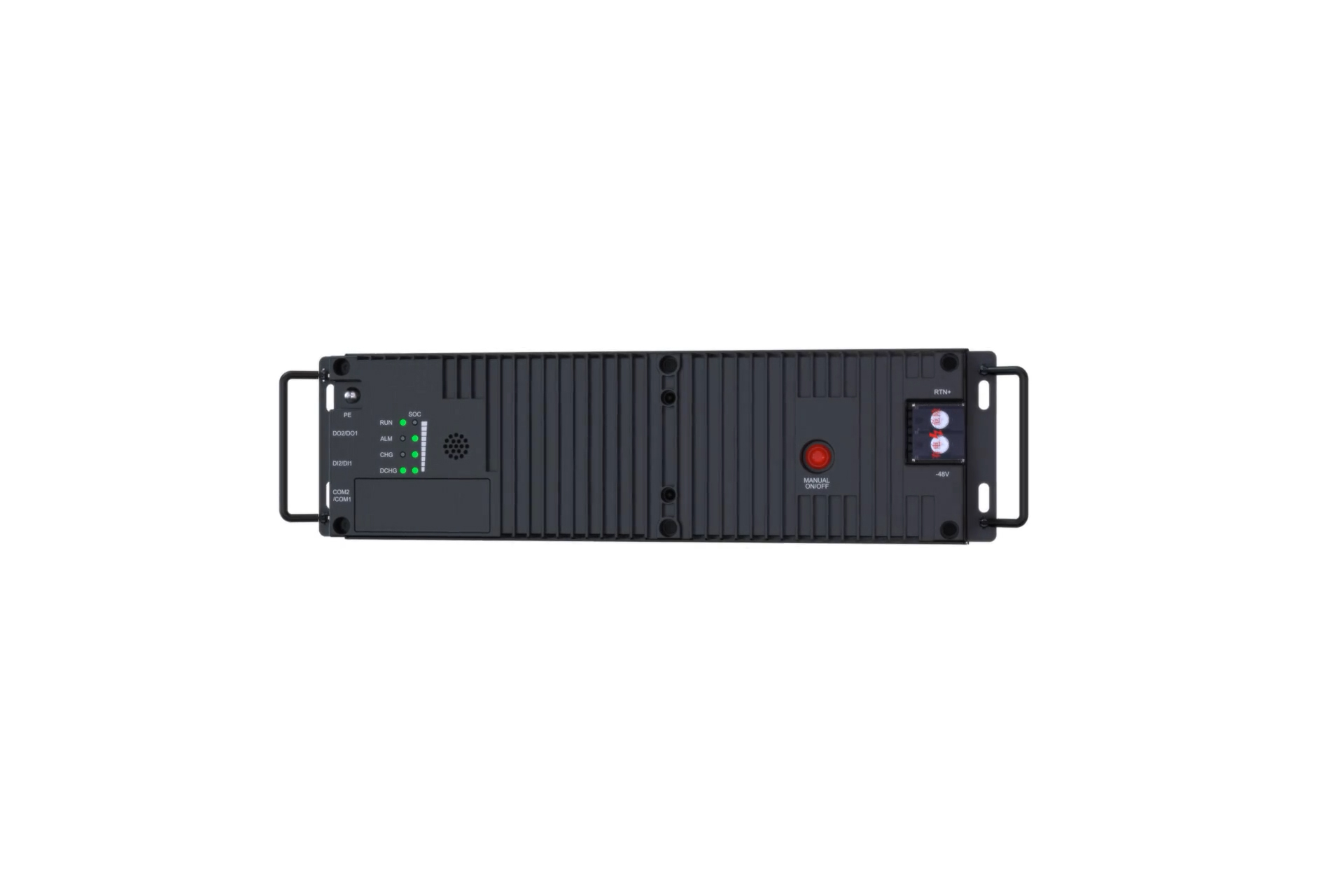

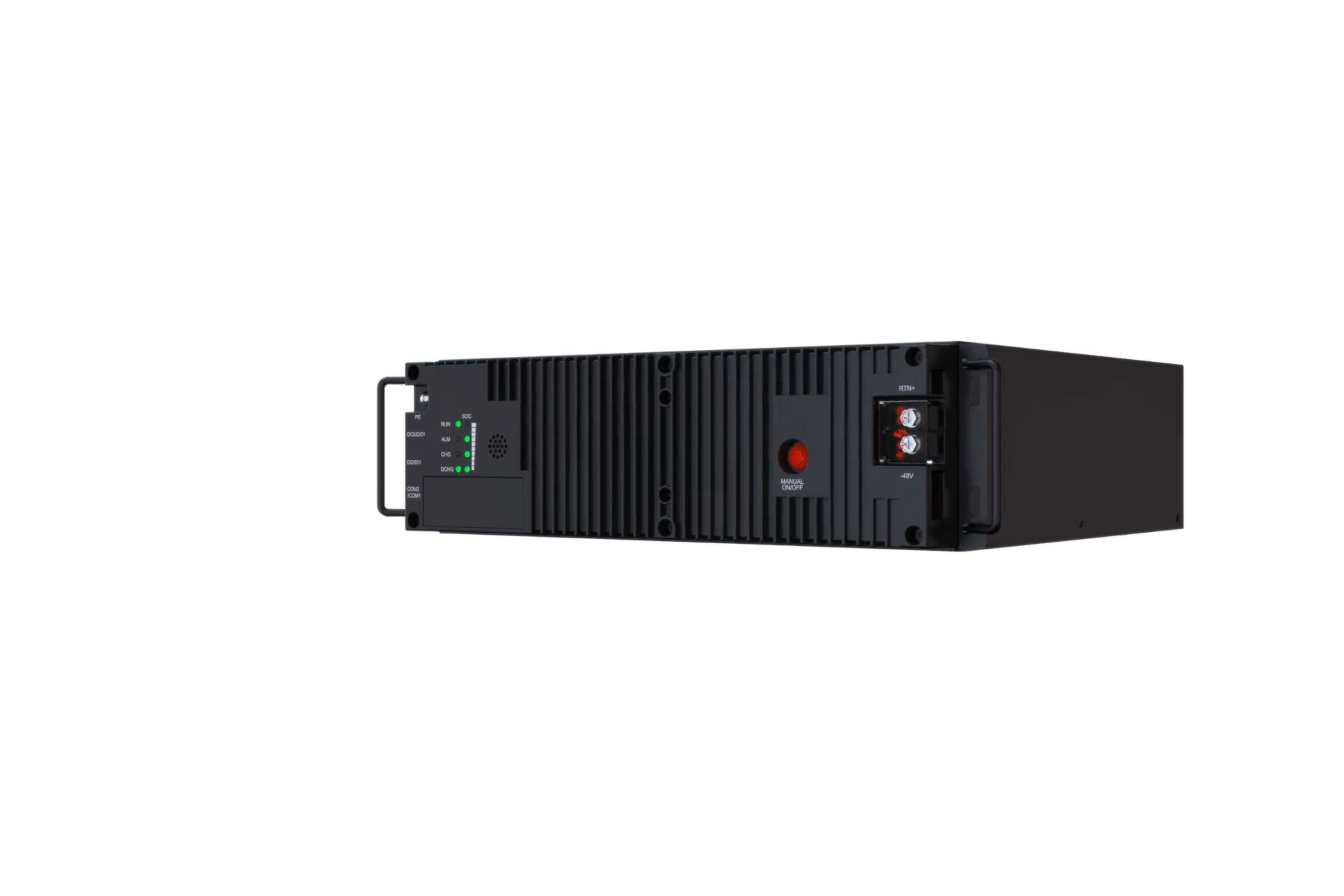

MOKE48100-CT

Nominal capacity

100Ah

Nominal Voltage

48V

Maximum Charge/Discharge Current

100A

Rated Charge/Discharge Current

150A@25°C

Maximum Charge/Discharge Power

4800W@25°C

Cycle Life

3500@0.5C 80%DoD @ 25°C

Weight

43kg

Operating Voltage Range

40.5V-54V

Discharge Cut-off Voltage

54.0V

Nominal charge Voltage

40.5V

Operating Temp. Range/Charge

0°C-60°C

Operating Temp. Range/Discharge

-20°C-60°C

Storage Temperature

0°C-45°C

Communication

RS485,CAN; 2Dry Contact

Function

Peak Shaving/Mix Up With Lead-acid/Normal Lithium Battery

Allowed Humidity Range

5%-95%

Atmospheric Pressure

70kPa-106kPa

Ip

IP20

Altitude

<2000m

Protections

Overcharge/Over discharge/Over temperature/Over current/Short Circuit etc.

Design Standard

UN38.3,CE-EMC,IEC62619
