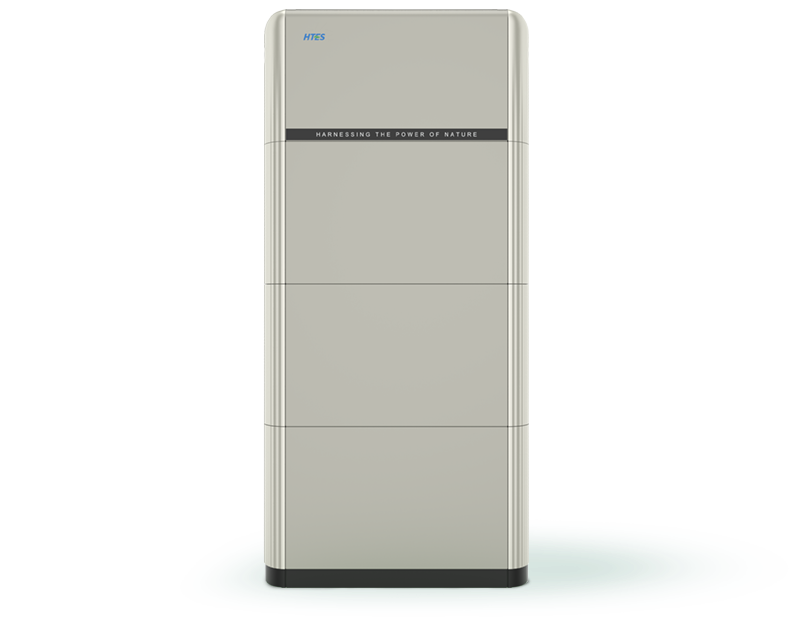

HELIOS H5000

The HELIOS H5000 Residential energy storage system is a modular design, which allows for flexible expansion and easy transportation. It has a built-in system protection for high safety levels. It uses quick-connect terminal connectors for flexible installation and simple maintenance. The innovative appearance design is fashionable and elegant, perfectly integrating into the home environment.

High-elastic rubber buffer pad

Easy to install, not easy to scratch the box, with limit function, no rot under wind and sun exposure

High-performance lithium iron phosphate battery

High safety, long cycle life, high energy density, good high temperature performance, green and environmental protection

Exquisite shell

Slim shape, small footprint, home appliance appearance, warm color matching, better integration into the home

Single package visualization display

Accurate calculation of SOC power, with SOC automatic calibration function, single package and single display more intuitive

Quick connector

Withstand 1000V DC voltage, IP67 high protection, double anti-misinsertion

Mature and reliable BMS management system

High reliability, high safety, high adaptability, low maintenance cost, advanced algorithm

Fixed bracket

Adjustable wall-mounted bracket, effectively reduces tilt, further improves safety factor

Safe base

The base is fixed to the ground, with high safety, corrosion resistance, high salt fog resistance, and effectively improves the service life.

STACKED CONFIGURATION

Modular design, Expandable at will with a stacked configuration.

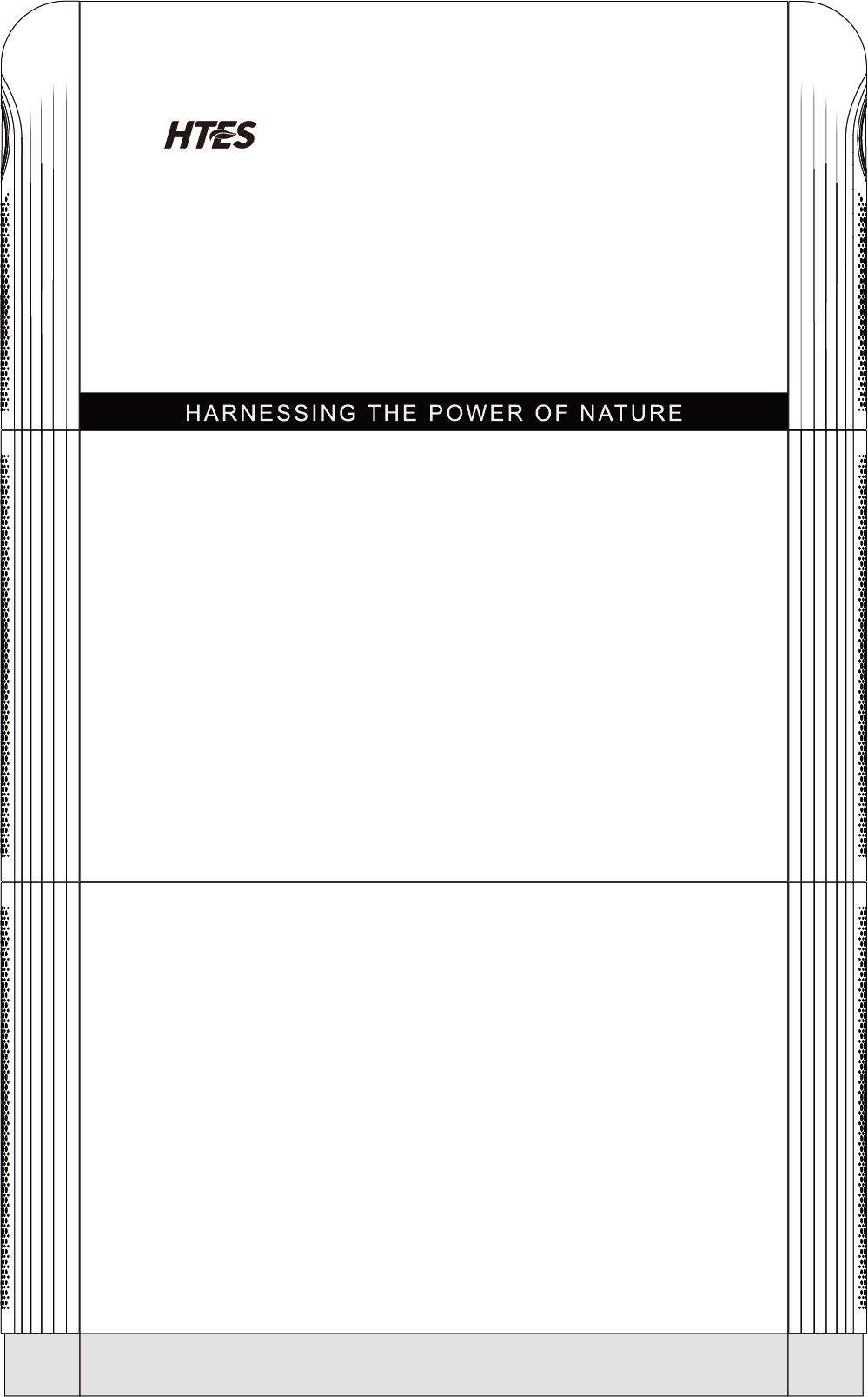

10kWh

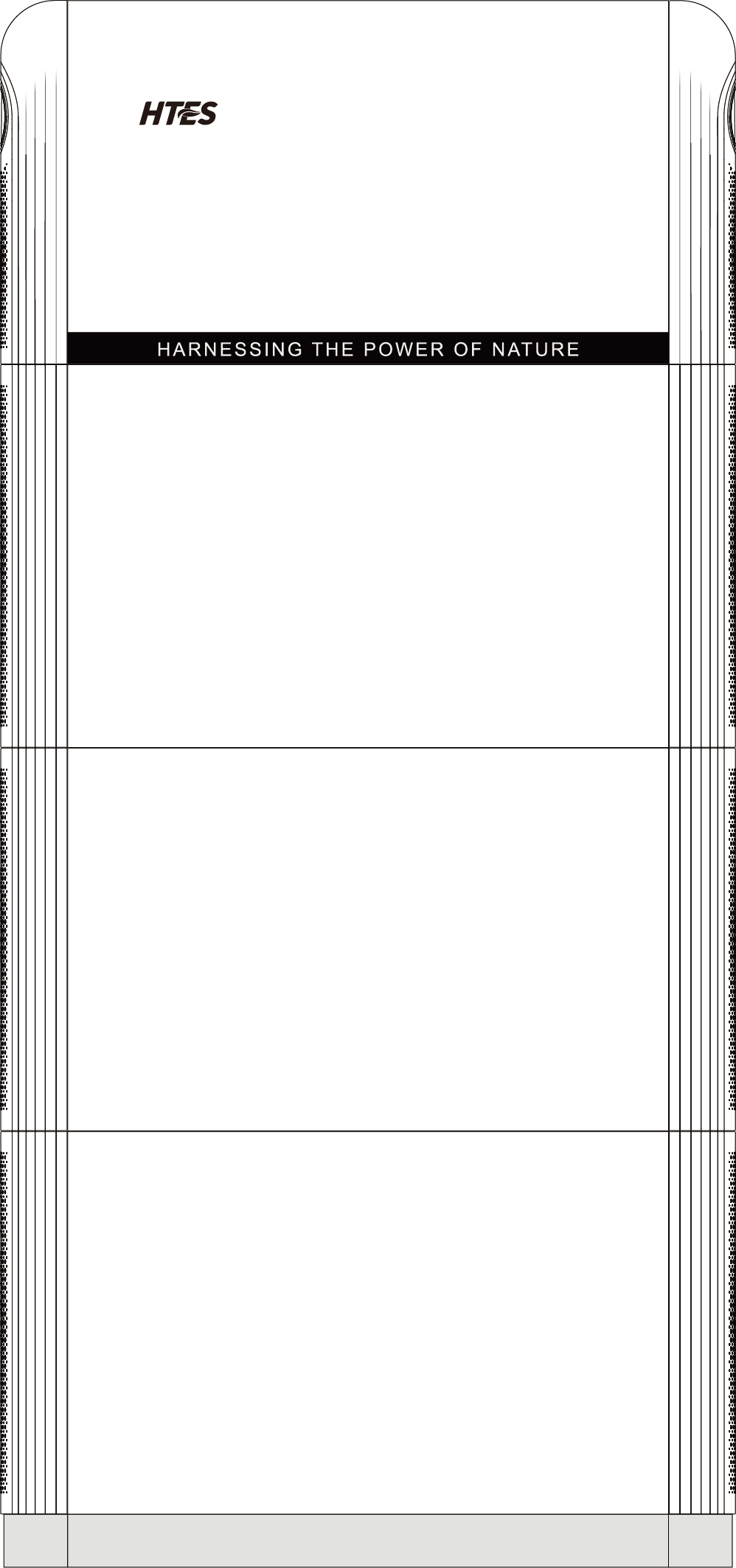

15kWh

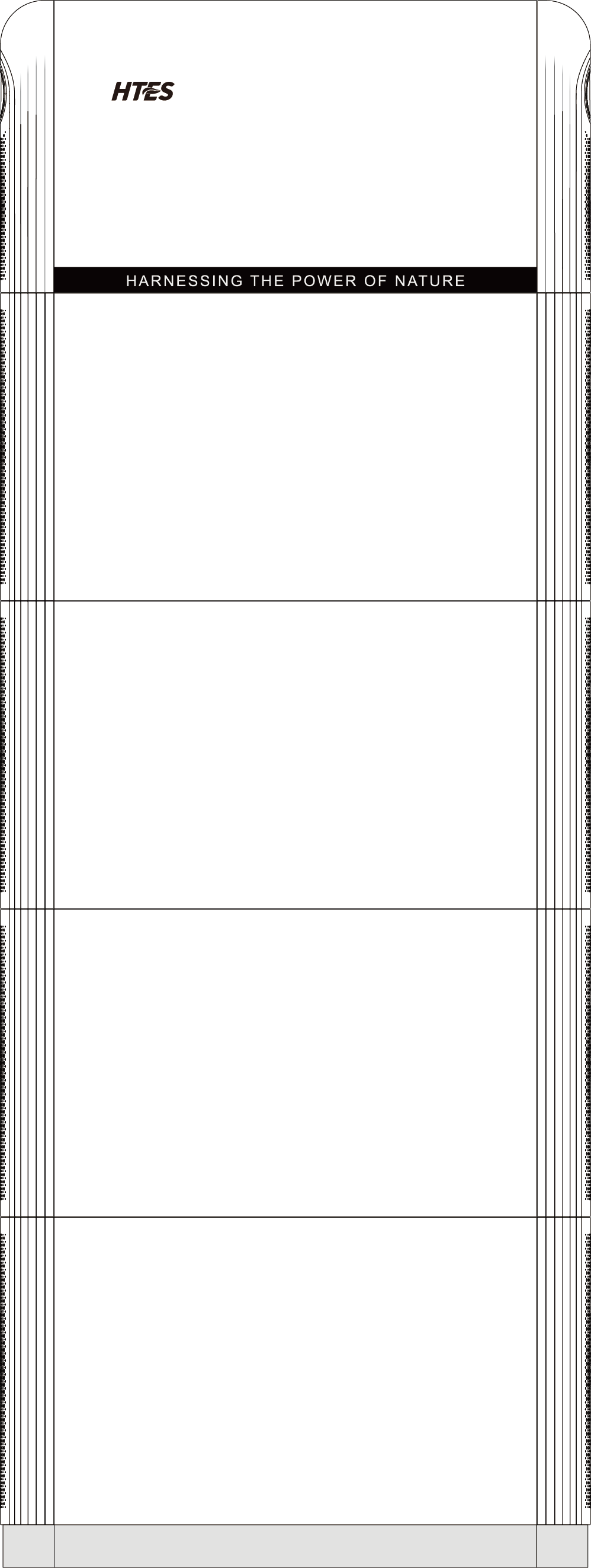

20kWh

HELIOS H5000 DATA SHEET

Advanced cell manufacturing process，Wide temperature range, low loss, high efficiency，Cluster temperature control system; convenient replacement, plug and play, ultra-fast maintenance，Safe and reliable, with high energy density and long life。

Product Model

HTESS-10K 51.2B /HTESS-15K 51.2B /HTESS-20K 51.2B

Rated Voltage

51.2V

Voltage Range

44.8V-57.6V

Rated Capacity

200Ah @0.2C,25℃/300Ah @0.2C,25℃/400Ah @0.2C,25℃

Rated Energy

10.24kWh @0.2C,25℃/15.36kWh @0.2C,25℃/20.48kWh @0.2C,25℃

Charge/discharge Current

Standard 20A @25℃ , Max100A @25℃(Single Battery Pack)

Communication Method

CAN/RS485

Protection Function

Over-voltage & under-voltage protection / Over-current protection / Short-circuit protection / Over-temperature / Under-temperature protection, etc.

Protection Level

IP54

Cooling Method

Nature Cooling

Cycle Life

≥6000Cycles, 80%DoD,@25℃

Size (W*H*D)

700±2*1125±2*152±2mm/700±2*1490±2*152±2mm/700±2*1855±2*152±2mm

Weight

105±1 kg/150±1 kg/195±1 kg

Operating Temperature

Charge: 3~ 55°C, Discharge: -20~ 55°C

Altitude

0~2000m

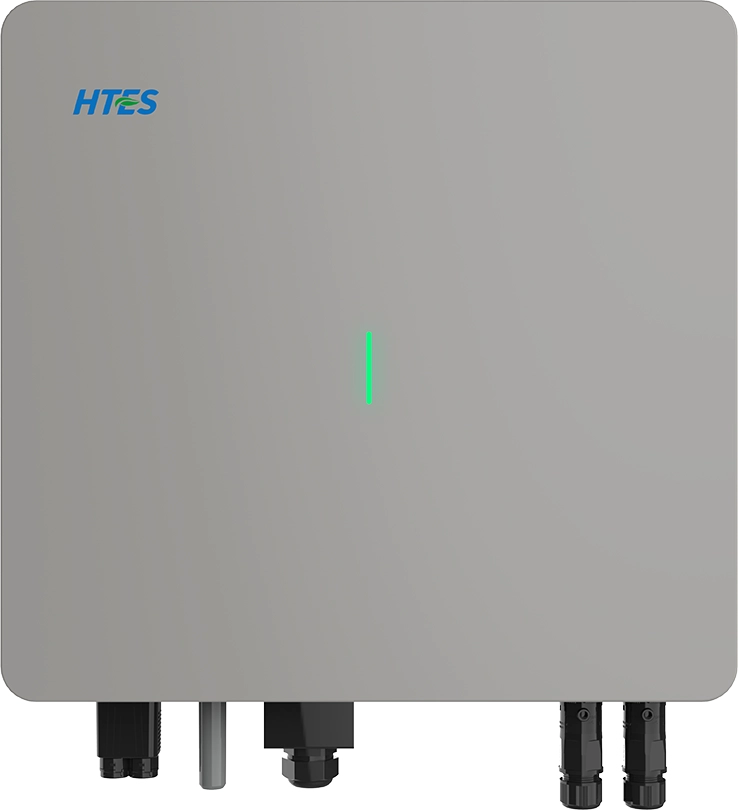

RESIDENTIAL SINGLE-PHASE HYBRID INVERTER

Photovoltaic Energy Storage Integrated Inverter is specifically designed for residential and small-scale commercial applications，It features a compact size, high efficiency, multiple protection functions, safety, reliability，Stable intelligence, and a high protection rating of up to IP65，Making it suitable for various usage environments。

Millisecond-level switching between grid-connected and off-grid modes,supporting seamless and uninterrupted intelligent switching.

Two charging modes available: photovoltaic and grid power.

Operates worry-free at high altitudes, fearless in harsh conditions such as severe cold, ensuring stable and reliable performance.

Supports Virtual Power Plant (VPP)

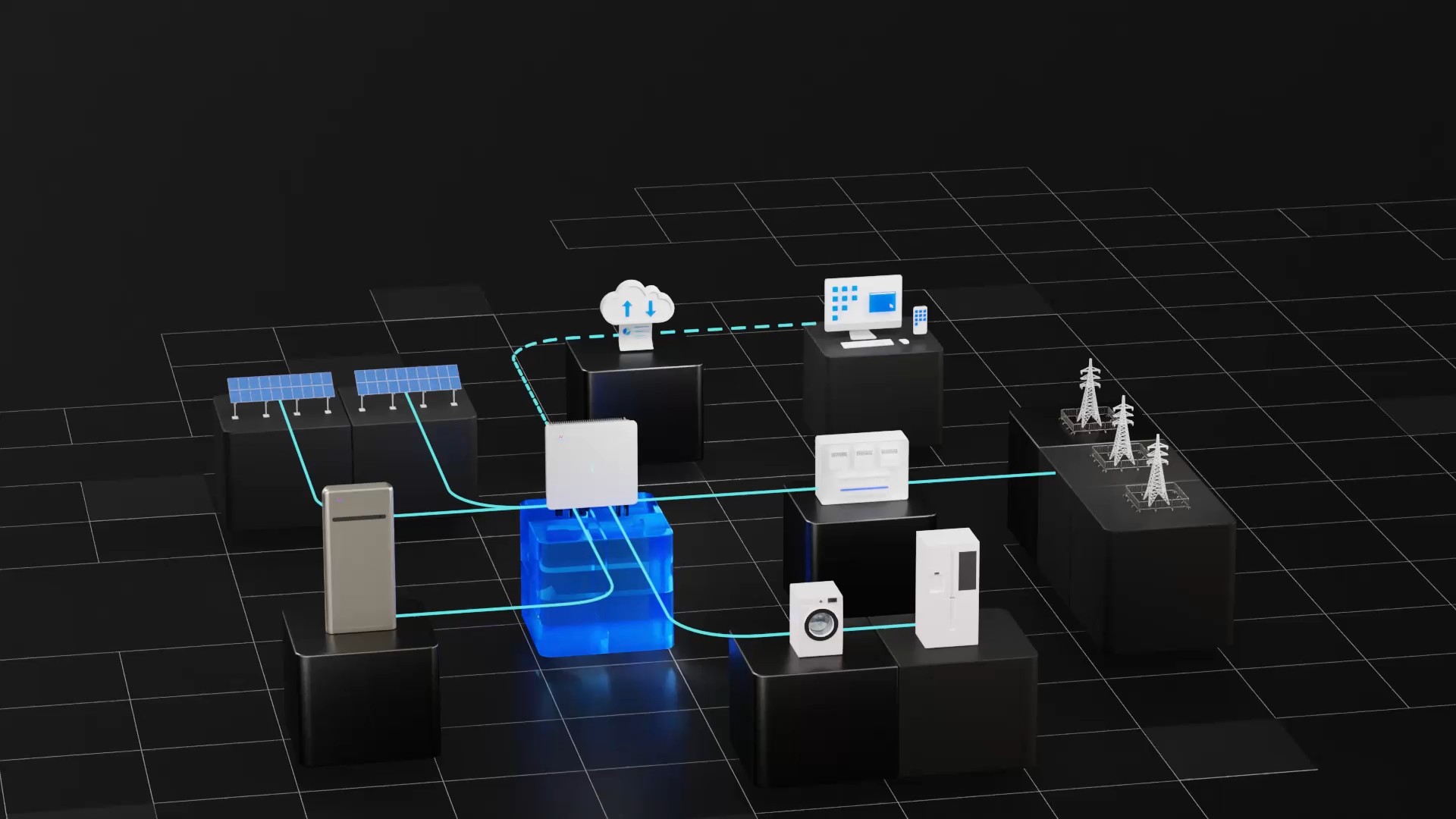

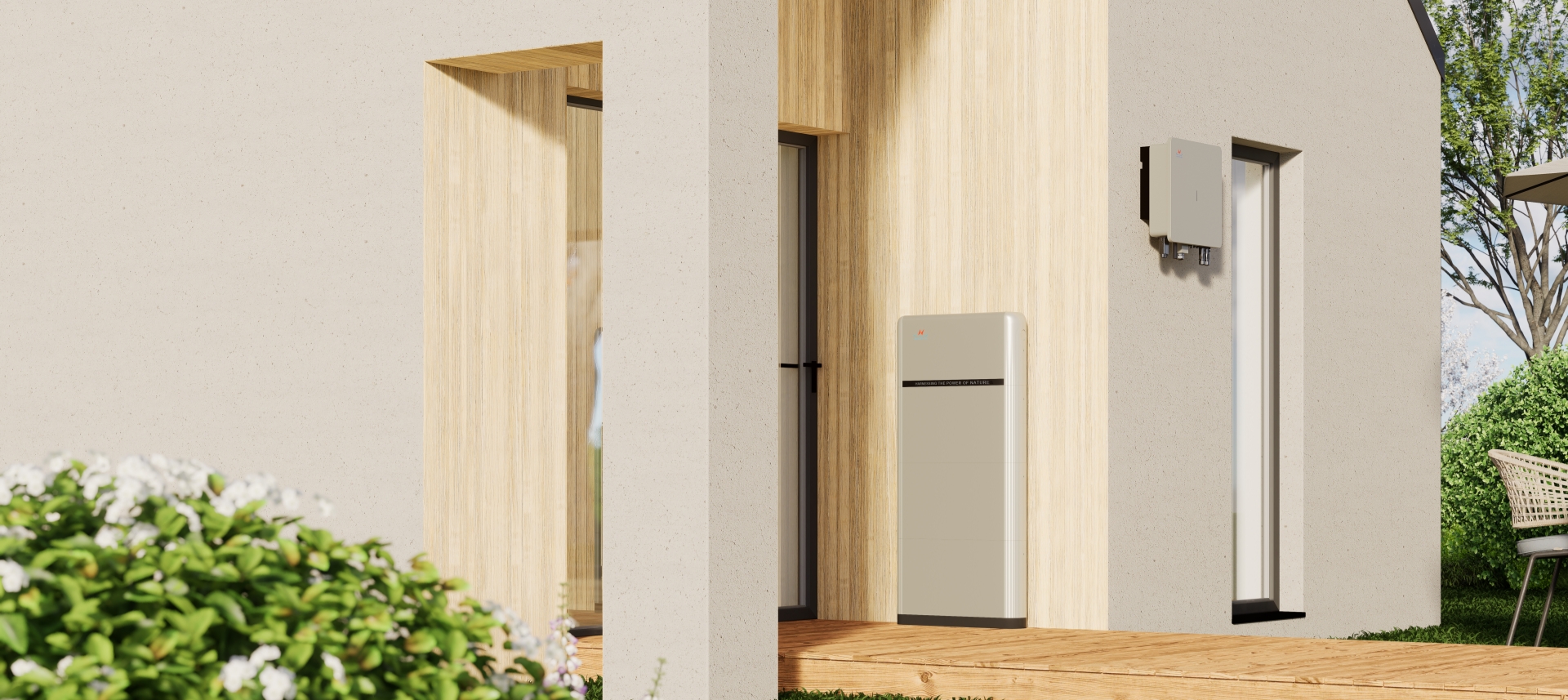

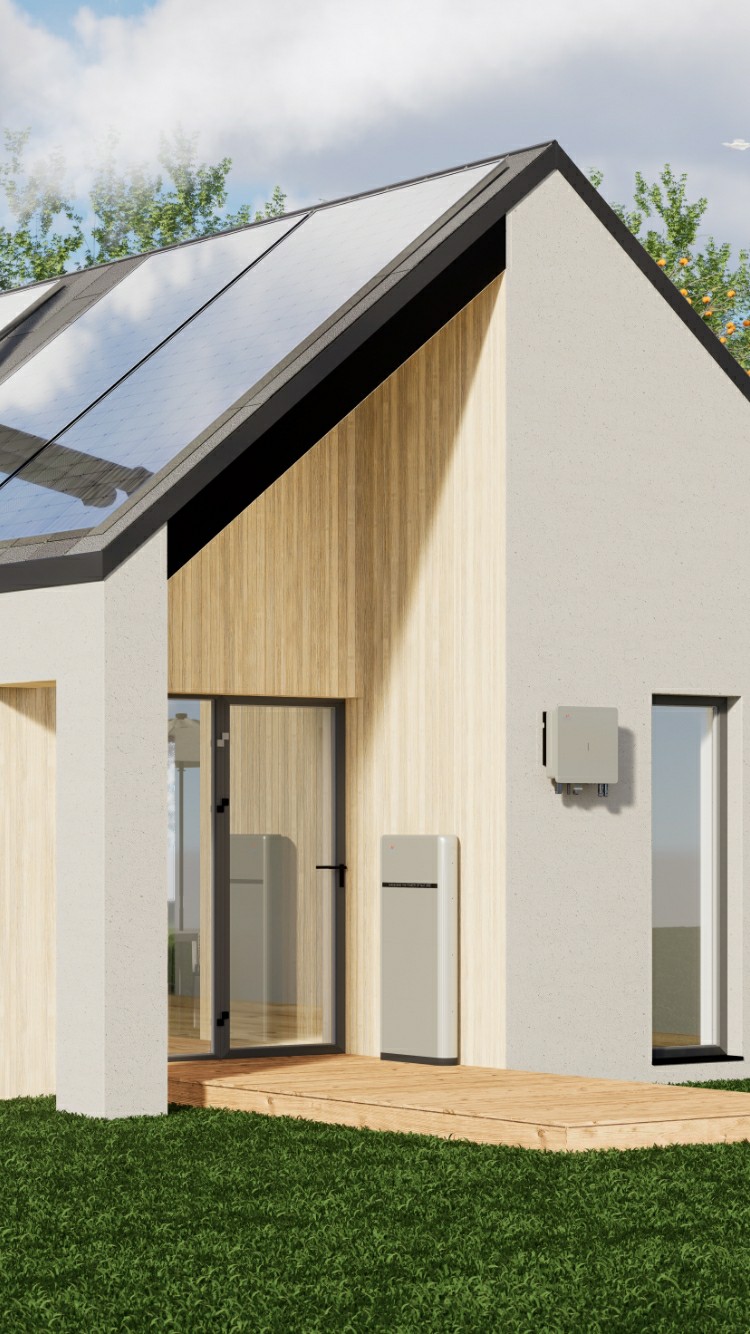

TYPICAL APPLICATION SCENARIOS

SINGLE-PHASE HYBRID INVERTER PARAMETERS TABLE

OFF-GRID OUTPUT

ON-GRID PARAMETER

PV INPUT

BATTERY PARAMETER

EFFICIENCY

GENERAL DATA

CERTIFICATION

HT-HBI-S3SH V1

Nominal Output Power

3000W

Nominal Voltage

220V/230V/240V

Nominal Frequency

50/60Hz

Nominal Output Current

13.6A

Output THDu

<2%

HT-HBI-S3.6SH V1

Nominal Output Power

3600W

Nominal Voltage

220V/230V/240V

Nominal Frequency

50/60Hz

Nominal Output Current

16.4A

Output THDu

<2%

HT-HBI-S4SH V1

Nominal Output Power

4000W

Nominal Voltage

220V/230V/240V

Nominal Frequency

50/60Hz

Nominal Output Current

18.2A

Output THDu

<2%

HT-HBI-S4.6SH V1

Nominal Output Power

4600W

Nominal Voltage

220V/230V/240V

Nominal Frequency

50/60Hz

Nominal Output Current

20.8A

Output THDu

<2%

HT-HBI-S5SH V1

Nominal Output Power

5000W

Nominal Voltage

220V/230V/240V

Nominal Frequency

50/60Hz

Nominal Output Current

22.7A

Output THDu

<2%

HT-HBI-S6SH V1

Nominal Output Power

6000W

Nominal Voltage

220V/230V/240V

Nominal Frequency

50/60Hz

Nominal Output Current

27.2A

Output THDu

<2%

HT-HBI-S3SH V1

Nominal Output Power

3000W

Max. Output Current

13.6A

Nominal Grid Voltage

220V/230V/240V

Max. lnput Current from Grid

16.4A

Grid Voltage Range

184-276V

Frequency Range

45-65HZ

HT-HBI-S3.6SH V1

Nominal Output Power

3600W

Max. Output Current

16.4A

Nominal Grid Voltage

220V/230V/240V

Max. lnput Current from Grid

22.7A

Grid Voltage Range

184-276V

Frequency Range

45-65HZ

HT-HBI-S4SH V1

Nominal Output Power

4000W

Max. Output Current

18.2A

Nominal Grid Voltage

220V/230V/240V

Max. lnput Current from Grid

22.7A

Grid Voltage Range

184-264V

Frequency Range

45-65HZ

HT-HBI-S4.6SH V1

Nominal Output Power

4600W

Max. Output Current

20.8A

Nominal Grid Voltage

220V/230V/240V

Max. lnput Current from Grid

27.2A

Grid Voltage Range

184-264V

Frequency Range

45-65HZ

HT-HBI-S5SH V1

Nominal Output Power

5000W

Max. Output Current

22.7A

Nominal Grid Voltage

220V/230V/240V

Max. lnput Current from Grid

27.2A

Grid Voltage Range

184-276V

Frequency Range

45-65Hz

HT-HBI-S6SH V1

Nominal Output Power

6000W

Max. Output Current

27.2A

Nominal Grid Voltage

220V/230V/240V

Max. lnput Current from Grid

27.2A

Grid Voltage Range

184-276V

Frequency Range

45-65Hz

HT-HBI-S3SH V1

Max.Input Power

6000Wp

Starting Voltage

95V

Max.Input Voltage

600V

MPPT Voltage Range

80-550V

Full Load MPPT Voltage Range

350-500V

Number of MPPT

MaxInput String Per MPPT

Nominal Input Voltage

360V

Max.Input Current

18A/18A

HT-HBI-S3.6SH V1

Max.Input Power

7200Wp

Starting Voltage

95V

Max.Input Voltage

600V

MPPT Voltage Range

80-550V

Full Load MPPT Voltage Range

350-500V

Number of MPPT

MaxInput String Per MPPT

Nominal Input Voltage

360V

Max.Input Current

18A/18A

HT-HBI-S4SH V1

Max.Input Power

7200Wp

Starting Voltage

95V

Max.Input Voltage

600V

MPPT Voltage Range

80-550V

Full Load MPPT Voltage Range

350-500V

Number of MPPT

MaxInput String Per MPPT

Nominal Input Voltage

360V

Max.Input Current

18A/18A

HT-HBI-S4.6SH V1

Max.Input Power

8000Wp

Starting Voltage

95V

Max.Input Voltage

600V

MPPT Voltage Range

80-550V

Full Load MPPT Voltage Range

350-500V

Number of MPPT

MaxInput String Per MPPT

Nominal Input Voltage

360V

Max.Input Current

18A/18A

HT-HBI-S5SH V1

Max.Input Power

8000Wp

Starting Voltage

95V

Max.Input Voltage

600V

MPPT Voltage Range

80-500V

Full Load MPPT Voltage Range

350-500V

Number of MPPT

MaxInput String Per MPPT

Nominal Input Voltage

360V

Max.Input Current

18A/18A

HT-HBI-S6SH V1

Max.Input Power

9000Wp

Starting Voltage

95V

Max.Input Voltage

600V

MPPT Voltage Range

80-500V

Full Load MPPT Voltage Range

350-500V

Number of MPPT

MaxInput String Per MPPT

Nominal Input Voltage

360V

Max.Input Current

18A/18A

HT-HBI-S3SH V1

Battery Type

Lithium-ion/Lead-Acid(optional)

Nominal Battery Voltage

51.2V

Battery Voltage Range

42-58V

Max. Charging Voltage

≤60V

Max. Continuous Charging/Discharging Current

75A

HT-HBI-S3.6SH V1

Battery Type

Lithium-ion/Lead-Acid(optional)

Nominal Battery Voltage

51.2V

Battery Voltage Range

42-58V

Max. Charging Voltage

≤60V

Max. Continuous Charging/Discharging Current

85A

HT-HBI-S4SH V1

Battery Type

Lithium-ion/Lead-Acid(optional)

Nominal Battery Voltage

51.2V

Battery Voltage Range

42-58V

Max. Charging Voltage

≤60V

Max. Continuous Charging/Discharging Current

85A

HT-HBI-S4.6SH V1

Battery Type

Lithium-ion/Lead-Acid(optional)

Nominal Battery Voltage

51.2V

Battery Voltage Range

42-58V

Max. Charging Voltage

≤60V

Max. Continuous Charging/Discharging Current

100A

HT-HBI-S5SH V1

Battery Type

Lithium-ion/Lead-Acid(optional)

Nominal Battery Voltage

51.2V

Battery Voltage Range

42-58V

Max. Charging Voltage

≤60V

Max. Continuous Charging/Discharging Current

100A

HT-HBI-S6SH V1

Battery Type

Lithium-ion/Lead-Acid(optional)

Nominal Battery Voltage

51.2V

Battery Voltage Range

42-58V

Max. Charging Voltage

≤60V

Max. Continuous Charging/Discharging Current

100A

HT-HBI-S3SH V1

Max. Efficiency

97.5%

European Efficiency

97.2%

Max. Battery Charging/Discharging Efficiency

95.2%

HT-HBI-S3.6SH V1

Max. Efficiency

97.8%

European Efficiency

97.3%

Max. Battery Charging/Discharging Efficiency

95.2%

HT-HBI-S4SH V1

Max. Efficiency

97.8

European Efficiency

97.3%

Max. Battery Charging/Discharging Efficiency

95.2%

HT-HBI-S4.6SH V1

Max. Efficiency

97.8.0%

European Efficiency

97.3%

Max. Battery Charging/Discharging Efficiency

95.2%

HT-HBI-S5SH V1

Max. Efficiency

98.0%

European Efficiency

97.5%

Max. Battery Charging/Discharging Efficiency

95.2%

HT-HBI-S6SH V1

Max. Efficiency

98.0%

European Efficiency

97.5%

Max. Battery Charging/Discharging Efficiency

95.2%

HT-HBI-S3SH V1

Size (W*H*D)

500mm*470mm*180mm

Weight

21kg

Noise

<25dB(A)

Operating Temperature Range

-25℃~+60℃

Cooling Method

Natural Cooling

Ingress Protection Grade

IP65

Mornitoring

LED/APP/WIFI/4G/Bluetooth

Communication Port

RS485/CAN/DRED/Dry contact/Parallel port

Protection

DC Switch:PV Insulation Resistance Detection;residual current monitoring;Anti-islanding protection;AC Short circuit protection;AC Overvoltage and overload protection;AC Overvoltage protection:LEVEL Ⅲ; PV&Battery:LEVEL Ⅱ;Surge protection;Lightning protection;Reverse polarity protection(PV&Battery)

HT-HBI-S3.6SH V1

Size (W*H*D)

500mm*470mm*180mm

Weight

21kg

Noise

<25dB(A)

Operating Temperature Range

-25℃~+60℃

Cooling Method

Natural Cooling

Ingress Protection Grade

IP65

Mornitoring

LED/APP/WIFI/4G/Bluetooth

Communication Port

RS485/CAN/DRED/Dry contact/Parallel port

Protection

HT-HBI-S4SH V1

Size (W*H*D)

500mm*470mm*180mm

Weight

21kg

Noise

<25dB(A)

Operating Temperature Range

-25℃~+60℃

Cooling Method

Natural cooling

Ingress Protection Grade

IP65

Mornitoring

LED/APP/WIFI/4G/Bluetooth

Communication Port

RS485/CAN/DRED/Dry contact/Parallel port

Protection

HT-HBI-S4.6SH V1

Size (W*H*D)

500mm*470mm*180mm

Weight

21kg

Noise

<25dB(A)

Operating Temperature Range

-25℃~+60℃

Cooling Method

Natural cooling

Ingress Protection Grade

IP65

Mornitoring

LED/APP/WIFI/4G/Bluetooth

Communication Port

RS485/CAN/DRED/Dry contact/Parallel port

Protection

HT-HBI-S5SH V1

Size (W*H*D)

500mm*470mm*180mm

Weight

21kg

Noise

<25dB(A)

Operating Temperature Range

-25℃~+60℃

Cooling Method

Natural cooling

Ingress Protection Grade

IP65

Mornitoring

LED/APP/WIFI/4G/Bluetooth

Communication Port

RS485/CAN/DRED/Dry contact/Parallel port

Protection

HT-HBI-S6SH V1

Size (W*H*D)

500mm*470mm*180mm

Weight

21kg

Noise

<25dB(A)

Operating Temperature Range

-25℃~+60℃

Cooling Method

Natural cooling

Ingress Protection Grade

IP65

Mornitoring

LED/APP/WIFI/4G/Bluetooth

Communication Port

RS485/CAN/DRED/Dry contact/Parallel port

Protection

HT-HBI-S3SH V1

CE_LVD

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

CE_EMC

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4,EN 62920

Grid

VDE-AR-N 4105,C10-11,G98/G99，CEI 0-21,EN50549,NRS097-2-1,R25,UNE 217001 UNE 217002,NTS2.1,PEA,MEA,NC RfG

HT-HBI-S3.6SH V1

CE_LVD

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

CE_EMC

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4,EN 62920

Grid

VDE-AR-N 4105,C10-11,G98/G99，CEI 0-21,EN50549,NRS097-2-1,R25,UNE 217001 UNE 217002,NTS2.1,PEA,MEA,NC RfG

HT-HBI-S4SH V1

CE_LVD

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

CE_EMC

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4,EN 62920

Grid

VDE-AR-N 4105,C10-11,G98/G99，CEI 0-21,EN50549,NRS097-2-1,R25,UNE 217001 UNE 217002,NTS2.1,PEA,MEA,NC RfG

HT-HBI-S4.6SH V1

CE_LVD

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

CE_EMC

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4,EN 62920

Grid

VDE-AR-N 4105,C10-11,G98/G99，CEI 0-21,EN50549,NRS097-2-1,R25,UNE 217001 UNE 217002,NTS2.1,PEA,MEA,NC RfG

HT-HBI-S5SH V1

CE_LVD

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

CE_EMC

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4,EN 62920

Grid

VDE-AR-N 4105,C10-11,G98/G99，CEI 0-21,EN50549,NRS097-2-1,R25,UNE 217001 UNE 217002,NTS2.1,PEA,MEA,NC RfG

HT-HBI-S6SH V1

CE_LVD

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

CE_EMC

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4,EN 62920

Grid

VDE-AR-N 4105,C10-11,G98/G99，CEI 0-21,EN50549,NRS097-2-1,R25,UNE 217001 UNE 217002,NTS2.1,PEA,MEA,NC RfG

Smart Home Energy Manager, Providing You With Peace Of Mind

REVITALIZING ENERGY, LIMITLESS POWER FOR YOU
